MYANMAR (BURMA)
COASTAL FORCES
PGM401 patrol gunboats (1959-1961)

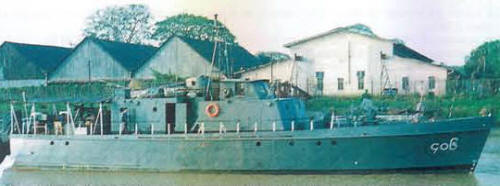

PGM406 1992
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp. | Fate |
|---|---|---|---|---|---|---|---|
| PGM401 | Marinette Marine, USA | 8.1959 | in service (2019) | ||||
| PGM402 | Marinette Marine, USA | 8.1959 | in service (2019) | ||||
| PGM403 | Marinette Marine, USA | 9.1959 | in service (2019) | ||||
| PGM404 | Marinette Marine, USA | 9.1959 | in service (2019) | ||||
| PGM405 | Peterson Builders, Sturgeon Bay, USA | 6.1961 | in service (2019) | ||||
| PGM406 | Peterson Builders, Sturgeon Bay, USA | 6.1961 | in service (2019) |
Technical data
| Displacement standard, t | 100 |
|---|---|
| Displacement full, t | 141 |
| Length, m | 30.8 |
| Breadth, m | 6.45 |
| Draught, m | 2.30 |
| No of shafts | 2 |
| Machinery | 8 General Motors 6-71 diesels |
| Power, h. p. | 2040 |
| Max speed, kts | 17 |
| Fuel, t | diesel oil 16 |
| Endurance, nm(kts) | 1000(16) |
| Armament | 1 x 1 - 40/60 Mk 3, 2 x 2 - 20/70 Mk 24, 2 x 1 - 12.7/90 |
| Electronic equipment | PGM401-404: EDO320 radar PGM405, 406: Raytheon 1500 radar |
| Complement | 17 |
Standard scale images
PGM401 1970
Graphics
PGM406 1992
Project history
USN PGM type, austere export service. USCG 95ft type.
Modernizations
None.
Naval service
No significant events.
