MGB101 motor gunboats (1960)
MGB102 1962
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
MGB101-110 |
Burma: MGB101-110 |
1960: MGB101-110 |
none |
none |
1983: MGB101, 104-106, 108 early 1990s: MGB102, 103, 107, 109, 110 |
Technical data
| Displacement standard, t | 49 |
|---|---|
| Displacement full, t | 66 |
| Length, m | 25.3 |
| Breadth, m | 4.88 |
| Draught, m | 1.70 |
| No of shafts | 2 |
| Machinery | 4 General Motors diesels |
| Power, h. p. | 800 |
| Max speed, kts | 11 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) |
|
| Armament | 1 x 1 - 40/60 Mk 3, 1 x 1 - 20/70 Mk 10 |
| Electronic equipment | radar |
| Complement | 16 |
Standard scale images

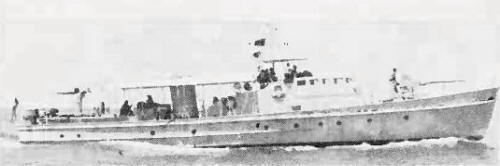

MGB101 1965
Graphics

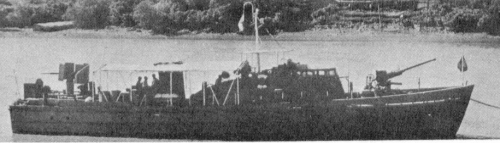

MGB102 1962
MGB110
Project history
Ex-USCG 83ft type cutters with new hulls built in Burma.
Modernizations
None.
Naval service
No significant events.
