MYANMAR (BURMA)
COASTAL FORCES
MAGA guided missile patrol craft (1995-1997)

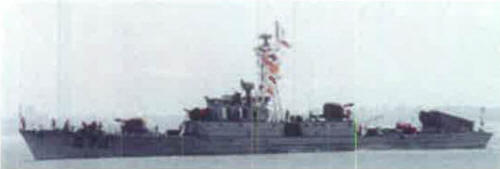

Zeyda 2001
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp. | Fate |
|---|---|---|---|---|---|---|---|
| မာဃ [Maga] | 471 | Quixin, Shanghai, China | 12.1995 | in service (2019) | |||
| သဲတ္တ္ [Saittra] | 472 | Quixin, Shanghai, China | 12.1995 | in service (2019) | |||
| ဒ္ရဥဝ [Duwa] | 473 | Quixin, Shanghai, China | 11.1996 | in service (2019) | |||
| ဇေယ္ [Zeyda] | 474 | Quixin, Shanghai, China | 11.1996 | in service (2019) | |||
| ဟံသာ [Nastha] | 475 | Quixin, Shanghai, China | 4.1997 | in service (2019) | |||
| ဒ္ဒာန္ဗ [Danba] | 476 | Quixin, Shanghai, China | 4.1997 | in service (2019) |
Technical data
| Displacement standard, t | 430 |
|---|---|
| Displacement full, t | 480 |
| Length, m | 62.0 |
| Breadth, m | 7.20 |
| Draught, m | 2.20 |
| No of shafts | 4 |
| Machinery | 4 diesels |
| Power, h. p. | 13200 |
| Max speed, kts | 28 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 750(18) |
| Armament | 2 x 2 C-801 SSM (4 C-801), 2 x 2 - 37/63 type 76A, 2 x 2 - 14.5/93 |
| Electronic equipment | type 756, type 352C, type 341 radars |
| Complement | 60 |
Standard scale images
Maga 2000
Graphics
Zeyda 2001
Project history
Chinese type 343M or 037-II, delivered with no missiles aboard, missiles were provided in late 2010s. Design is based on the obsolescent Haizhu class subchaser/patrol boat.
Modernizations
None.
Naval service
Hantha was damaged in a collision during builder's trials in August 1996.
