553 2001

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp.	Fate
	551		Yangon N Yd			1996	in service (2019)
	552		Yangon N Yd			1996	in service (2019)
	553		Yangon N Yd			1996	in service (2019)
	554		Yangon N Yd			1996	in service (2019)
	555		Yangon N Yd			1996	in service (2019)
	556		Yangon N Yd			2004	in service (2019)
	557		Yangon N Yd			2004	in service (2019)
	558		Yangon N Yd			2004	in service (2019)
	559		Yangon N Yd			2004	in service (2019)
	560		Yangon N Yd			2004	in service (2019)
	561		Yangon N Yd			2008	in service (2019)
	562		Yangon N Yd			2008	in service (2019)
	563		Yangon N Yd			2012	in service (2019)
	564		Yangon N Yd			2012	in service (2019)
	565		Yangon N Yd			2012	in service (2019)
	566		Yangon N Yd			2012	in service (2019)
	567		Yangon N Yd			2013	in service (2019)
	568		Yangon N Yd			2013	in service (2019)
	569		Yangon N Yd			2013	in service (2019)
	570		Yangon N Yd			2013	in service (2019)

Technical data

Displacement standard, t
Displacement full, t	215
Length, m	45.0
Breadth, m	7.00
Draught, m	2.50
No of shafts	2
Machinery	2 MTU diesels
Power, h. p.
Max speed, kts	30
Fuel, t	diesel oil
Endurance, nm(kts)
Armament	551-555: 1 x 2 - 37/63 type 76A, 2 x 2 - 25/82 type 61A 556-558: 2 x 2 YJ-83 SSM (4 C-802), 2 x 2 - 30/71 AK-230, 2 x 2 - 14.5/93 559, 560: 2 x 1 - 30/80 Medak CRN-91, 2 x 2 - 25/82 type 61A 561, 562: 2 x 1 YJ-83 SSM (2 C-802), 1 x 6 FN-6? SAM (6 FN-6)?, 1 x 2 - 30/71 AK-230, 2 x 2 - 14.5/93 563-566: 2 x 2 - 30/71 AK-230, 2 x 2 - 25/82 type 61A 567-570: 1 x 1 - 40/70 Bofors 564, 2 x 2 - 25/82 type 61A
Electronic equipment	551-555, 559, 560, 563-570: nav., type 341 radars 556-558, 561, 562: nav., 3Ts-25, MR-104 Rys' radars 561, 562: 2x nav., type 348, type 347 radars, 2x decoy RL
Complement	34

Standard scale images

Graphics

Modernizations

None.

Naval service

No significant events.

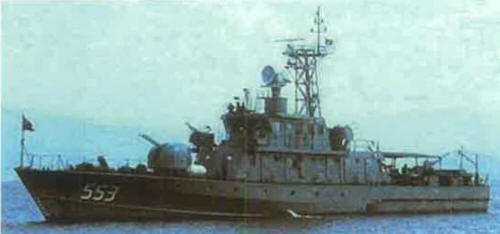

553 2001
