No412 patrol boats (1983-1988)





415 1993

Ships


Name No Yard No Builder Laid down Launched Comp. Fate
  412   Burma N Yd, Rangoon     1983 in service (2019)
  413   Burma N Yd, Rangoon     1983 in service (2019)
  414   Burma N Yd, Rangoon     1984 in service (2019)
  415   Burma N Yd, Rangoon     1984 in service (2019)
ထိဟယရ္ဇရ္ ၁ [Thihayarzar I] 331   Burma N Yd, Rangoon     6.1983 Coast Guard, in service (2019)
ထိဟယရ္ဇရ္ ၂ [Thihayarzar II] 332   Burma N Yd, Rangoon     6.1983 Coast Guard, in service (2019)


Technical data


Displacement standard, t

128
Displacement full, t

168
Length, m

33.5
Breadth, m

6.70
Draught, m2.00
No of shafts2
Machinery2 Deutz SBA16 MB216 LLKR diesels
Power, h. p.

2720
Max speed, kts16
Fuel, tdiesel oil
Endurance, nm(kts)

1400(14)
Armament

412-415: 2 x 1 - 40/60 Mk 3, 2 x 1 - 12.7/90

Thihayarzar I, II: small arms
Electronic equipment

nav. radar
Complement17


Graphics

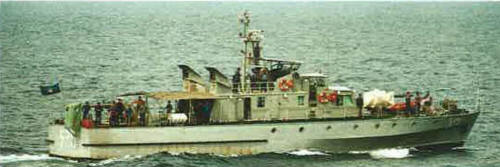

<i>415 </i>1993
415 1993

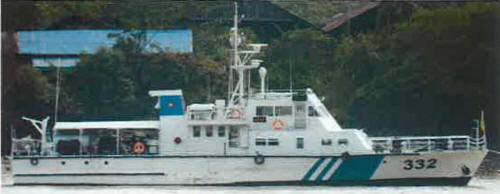

<i>Thihayarzar II </i>2013
Thihayarzar II 2013


Project history

Modification of USN PGM43 type.

Modernizations

None.

Naval service

No significant events.
