FIGHTING SHIPS OF THE WORLD
MYANMAR (BURMA)
COASTAL FORCES
No 112 coastal patrol craft (1979-1980)
113 1991
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
112 - 117 |
De Havilland Marine, Sydney, Australia: 112-117 |
1979: 112, 113 1980: 114-117 |
none |
none |
in service (2019): 112-117 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 27 |
| Length, m | 16.0 |
| Breadth, m | 5.00 |
| Draught, m | 1.20 |
| No of shafts | 2 |
| Machinery | 2 General Motors 12V71 TI diesels |
| Power, h. p. | 1120 |
| Max speed, kts | 27 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 700(22) |
| Armament | 1 x 1 - 20/70 Mk 10, 1 x 1 - 12.7/90 |
| Electronic equipment | Decca 110 radar |
| Complement | 8 |
Graphics

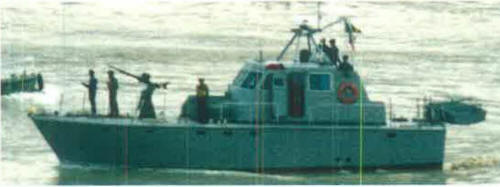

113 1991
Project history
Australian 'Carpentaria' design. Aluminium construction. Ordered in 197 for fishery protection.
Modernizations
None.
Naval service
No significant events.
