FIGHTING SHIPS OF THE WORLD
MOZAMBIQUE
COASTAL FORCES

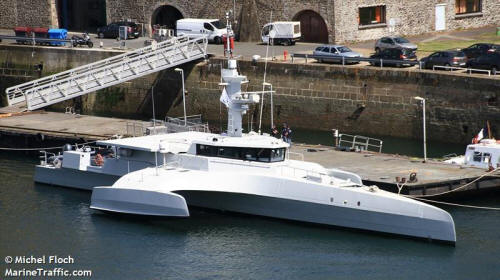

Eagle 43 patrol boats (2016)





2015

Ships


Names Builders Completed Losses Transfers Discarding

3 units

CMN, Cherbourg, France: 3 units

2016: 3 units

None

none

in service (2020): 3 units



Technical data


Displacement standard, t75
Displacement full, t
Length, m

43.6

Breadth, m

15.7

Draught, m1.60
No of shafts

2

Machinery

4 Scania DI13 070M diesels

Power, h. p.2000
Max speed, kts

30

Fuel, t

diesel oil

Endurance, nm(kts)5000(12)
Armament

1 x 1 - 20/90 Narwhal, 2 x 1 - 12.7/90, 1 UAV (S-100 Camcopter)

Electronic equipmentRaytheon radar, e/o system
Complement8 + 8 passengers


Graphics


2015
2015


Project history

Composite construction, trimaran hull was built by H2X at La Ciotat. Have landing deck for helicopter-type UAV and ramp aft for 7m RIB.

Modernizations

None.

Naval service

No significant events.
