Lubin 2004

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Lubin (ex-Лубин [Lubin])	91		Brodosplit, Split, Yugoslavia			1984 // 5.2006	retired ~2012

Technical data

Displacement standard, t	600
Displacement full, t	882
Length, m	58.2
Breadth, m	11.0
Draught, m	2.75 mean
No of shafts	2
Machinery	2 diesels
Power, h. p.	3480
Max speed, kts	16.2
Fuel, t	diesel oil
Endurance, nm(kts)	1500(14.3)
Armament	2 x 1 Strela-2M SAM (some 9K32), 1 x 1 - 40/60 Mk 3, 1 x 4 - 20/90 M-75
Military load	150 troops, 6 tanks
Electronic equipment	nav. radar
Complement	34

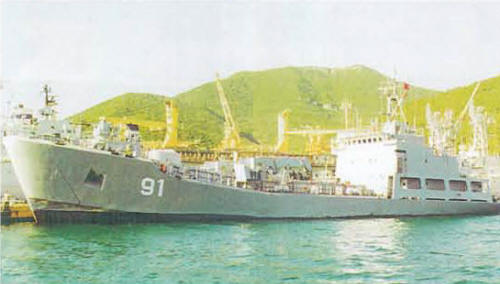

Graphics

Project history

PO means Pomocni Oruzar (Ammunition Auxiliary). Intended to supply combatants with missiles, torpedoes, mines and other. Continuous cargo deck can accommodate tanks. Had extendable bow ramp and two cranes. As ammunition transports can carry 20 torpedoes or 40 sea mines.

Modernizations

None.

Naval service

No significant events.
