G20 patrol gunboats (1935-1936)

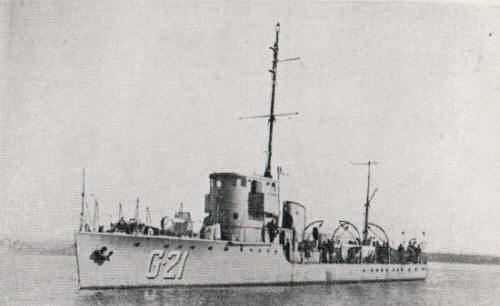

G21 1935

Ships


Name No Yard No Builder Laid down Launched Comp Fate
G20     Euskalduna de Construccion, Bilbao, Spain   1934 1935 stricken 1954
G21     Euskalduna de Construccion, Bilbao, Spain   1934 1935 stricken 1954
G22     Euskalduna de Construccion, Bilbao, Spain   1934 1935 stricken 1956
G23     Euskalduna de Construccion, Bilbao, Spain   1935 1936 stricken 1954
G24     Euskalduna de Construccion, Bilbao, Spain   1935 1936 lost 1946
G25     Euskalduna de Construccion, Bilbao, Spain   1935 1936 stricken 1956
G26     Euskalduna de Construccion, Bilbao, Spain   1935 1936 stricken 1954
G27     Euskalduna de Construccion, Bilbao, Spain   1935 1936 stricken 1954
G28     Euskalduna de Construccion, Bilbao, Spain   1935 1936 stricken 1966
G29     Euskalduna de Construccion, Bilbao, Spain   1935 1936 stricken 1955


Technical data


Displacement standard, t

130

Displacement full, t180
Length, m

45.0 pp 46.6 wl

Breadth, m

5.03

Draught, m

1.59

No of shafts

2

Machinery

2 MAN diesels

Power, h. p.

3000

Max speed, kts

26

Fuel, tdiesel oil
Endurance, nm(kts)



Armament

1 x 2 - 25/60 Hotchkiss, 2 x 2 - 13.2/76

Complement

21



Standard scale images


<i>G20 </i>1953
G20 1953
<i>GC28 </i>1965
GC28 1965


Graphics


<i>G21 </i>1935
G21 1935


Project history

A class from 10 fast small coastal patrols was ordered in 1932. Project was developed in the Great Britain, but ships were built in Spain. A class was shared between flotillas of Pacific ocean (ships with odd numbers) and Caribbean sea (even numbers). Ships had forecastle and "torpedo boat" streamlines. After introduction of Mexico into WWII all ships passed modernization in the USA, however stability after that fallen to critical mark.

Modernizations

1942, all: - 1 x 2 - 25/60, 2 x 2 - 13.2/76; + 3 x 1 - 20/70 Mk 4, 2 x 2 - 12.7/90, 2 DCT

Naval service

G24 was lost in 1946 as result of navigational accident.
