Chihuahua 1976

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
California (ex-Belet)	H3, 1965- B03		Bethlehem, Hingham, USA	1.1944	3.3.1944	6.1945 // 12.1963	wrecked 16.1.1972
Papaloapan (ex-Earheart)	H4, 1965- B04		Bethlehem, Hingham, USA	3.1944	12.5.1945	7.1945 // 12.1963	wrecked 1976, CTL
Tehuantepec (ex-Joseph M. Auman), 1980s- Zacatacas	H5, 1965- B05		Consolidated, Orange, USA	11.1943	5.2.1944	4.1945 // 12.1963	discarded 1989
Usumacinta (ex-Don O. Woods), 1980s- Miguel Hidalgo, 1994- Usumacinta	H6, 1965- B06, 1994- E20		Consolidated, Orange, USA	12.1943	19.2.1944	5.1945 // 12.1963	stricken 7.2001
Coahuila (ex-Rednour), 1980s- Vincente Guerrero, 1994- Coahuila	B07, 1994- E21		Bethlehem, Hingham, USA	12.1943	12.2.1944	12.1944 // 6.1969	stricken 7.2001

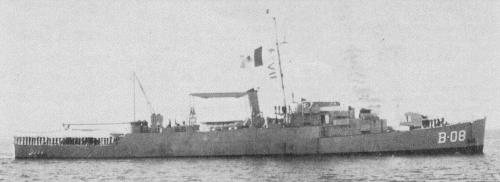

Chihuahua (ex-Barber), 1980s- José María Morelos y Pavon, 1994- Chihuahua	B08, 1994- E22		Norfolk N Yd, Portsmouth, USA	4/1943	20.5.1943	10/1943 // 12.1969	stricken 7.2001

Technical data

Displacement standard, t	1400
Displacement full, t	2130
Length, m	91.4 wl 93.3 oa
Breadth, m	11.3
Draught, m	3.84 full load
No of shafts	2
Machinery	2 General Electric steam turbo-generators, 2 boilers, 2 electric motors
Power, h. p.	12000
Max speed, kts	20
Fuel, t	oil 350
Endurance, nm(kts)	5000 (15)
Armament	1 x 1 - 127/38 Mk 30, 3 x 2 - 40/60 Mk 1, 6 x 1 - 20/70 Mk 10
Military load	4 LCVP, 162 marines, deck cargo
Electronic equipment	SC radar
Complement	204

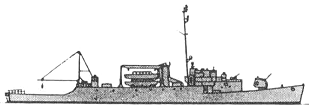

Standard scale images

Graphics

Project history

Former USN APD class fast personnel transports. Only Coahuila had lattice mast aft and high bridge, others had tripod aft and low bridge.

Modernizations

1980s, Tehuantepec, Usumacinta, Chihuahua: - SC radar, 6 x 1 - 20/70; + Kelvin Hughes 14/9 radar

1980s, Coahuila: - SC radar, 4 x 1 - 20/70; + Kelvin Hughes 14/9 radar

Naval service

California stranded and lost on Bahia, California, 16.1.1972. Papaloapan stranded in 1976, later raised and discarded.
