FIGHTING SHIPS OF THE WORLD
MAURITIUS
COAST GUARD
GUARDIAN patrol craft (1984/1993)





Guardian 2003

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Guardian (ex-राजतरंग [Rajtarang]) 60   Garden Reach, Calcutta, India   2.1981 1984 // 1993 in service (2020)


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate Guardian (ex-राजतरंग [Rajtarang]) 60   Garden Reach, Calcutta, India   2.1981 1984 // 1993 in service (2020)

Technical data


Displacement standard, t

167

Displacement full, t

210

Length, m

32.2 pp 37.8 oa

Breadth, m

7.50

Draught, m

1.30 hull 1.85 propellers

No of shafts

2

Machinery

2 MTU 16V538 TB92 diesels

Power, h. p.

6820

Max speed, kts

30

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

2 x 1 - 40/60 Mk 3

Electronic equipment

Bharat 1245 radar

Complement

32



Graphics

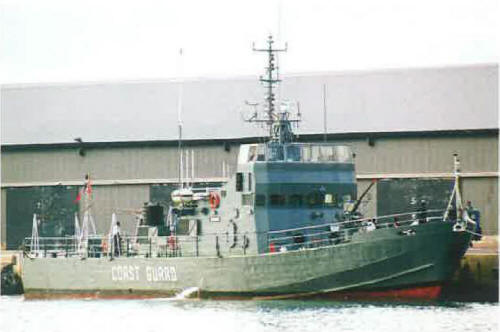

<i>Guardian </i>2003
Guardian 2003


Project history Former

Former Indian SDB Mk 3 class craft.

Modernizations

2006: - Bharat 1245 radar; + Furuno 1505 radar.

Naval service

No significant events.
