DIX JUILLET patrol boat (1981/1982)
El Nasr 1998
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| ديكس جويلية [Dix Juillet] (ex-Rapière), 1988- إن نصر [En Nasr] | P411 | Auroux, Arcachon, France | 15.2.1981 | 3.6.1981 | 1.11.1981 // 14.5.1982 | stricken 2011 |
Technical data
| Displacement standard, t | 115 |
|---|---|
| Displacement full, t | 148 |
| Length, m | 38.5 wl 40.7 oa |
| Breadth, m | 5.90 |
| Draught, m | 1.55 |
| No of shafts | 2 |
| Machinery | 2 AGO 195V12 CZSHR diesels |
| Power, h. p. | 5000 |
| Max speed, kts | 26 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1500(15) |
| Armament | 1 x 1 - 40/60 Mk 3, 2 x 1 - 12.7/90 |
| Electronic equipment | Decca 1226 radar |
| Complement | 20 |
Standard scale images
Dix Juillet 1980
Graphics

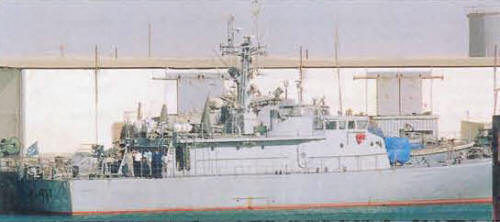

El Nasr 1998
Project history
French PATRA class patrol boat, built on speculation and acquired by French Navy in 1981 but sold to Mauritania next year.
Modernizations
1994: diesels were replaced by 2 Wärtsilä UD33V12 diesels (5000hp, 26.3kts)
Naval service
No significant events.
