P30 patrol craft (1969-1970/1992-1997)





P30 2001

Ships


Name No Yard No Builder Laid down Launched Comm Fate
(ex-GS09, ex-Boltenhagen) P29 241 Peenewerft, Wolgast, East Germany 8.10.1969 22.5.1970 19.9.1970 // 24.7.1997 discarded 2004-2005
(ex-GS01, ex-Ückermünde) P30 227 Peenewerft, Wolgast, East Germany 20.8.1968 27.2.1969 1.7.1969 // 7.1992 discarded 2004-2005
(ex-GS05, ex-Pasewalk) P31 231 Peenewerft, Wolgast, East Germany 12.12.1968 18.6.1969 18.10.1969 // 7.1992 discarded 2004-2005


Technical data


Displacement standard, t339
Displacement full, t

361
Length, m

52.0
Breadth, m

7.10
Draught, m

2.40
No of shafts

2
Machinery

2 40DM diesels
Power, h. p.

5000
Max speed, kts

20
Fuel, t

diesel oil
Endurance, nm(kts)

2000(15)
Armament

2 x 1 - 12.7/79
Electronic equipment

Furuno FR-8031, Decca 1229 radars
Complement

20


Standard scale images


<i>Boltenhagen </i>1975
Boltenhagen 1975


Graphics

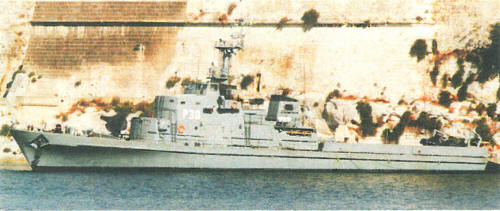

<i>P30 </i>2001
P30 2001


Project history

Former Volksmarine's minesweepers, incorporated to German Border Guard after unification of Germany but were not used operationally.

Modernizations

1999, all: - 2 x 1 - 12.7/79; + 1 x 4 - 14.5/93 ZPU-4

Naval service

No significant events.
