NAVYPEDIA

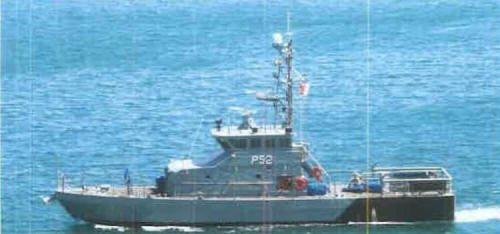

P52 2012

Ships

Names	Builders	Commissioned	Losses	Transfers	Discarding
P51, 52	Bollinger SY, Lockport, USA: P51, 52	2002: P51 2004: P52	none	none	in service (2020): P51, 52

Technical data

Displacement standard, t
Displacement full, t	91
Length, m	24.9 pp 26.5 oa
Breadth, m	5.92
Draught, m	1.74
No of shafts	2
Machinery	2 MTU 8V396TE94 diesels
Power, h. p.	2950
Max speed, kts	27
Fuel, t	diesel oil 9
Endurance, nm(kts)	882(10)
Armament	2 x 1 - 12.7/90, 2 x 1 - 7.6/90
Electronic equipment	2x radars, Janus-N e/o system
Complement	11

Standard scale images

Graphics

Project history

USCG 'Marine Protector' class boats. Fast launch at the ramp aft.

Modernizations

None.

Naval service

No significant events.
