FIGHTING SHIPS OF THE WORLD
MALTA
COASTAL FORCES
C25 patrol boats (1963/1974)





C26 1976

Ships


Name No Yard No Builder Laid down Launched Comp Fate
(ex-الرائد [Ar Riad]) C25   Mosor, Trogir, Yugoslavia     1963 // 16.1.1974 stricken 1990
(ex-طارق [Tariq]) C26   Mosor, Trogir, Yugoslavia     1963 // 16.1.1974 stricken 1991


Technical data


Displacement standard, t86
Displacement full, t102
Length, m

35.0

Breadth, m

4.90

Draught, m

1.50

No of shafts

2

Machinery

2 MTU 12V493 diesels

Power, h. p.

1800

Max speed, kts

21

Fuel, t

diesel oil

Endurance, nm(kts)1400(12)
Armament

1 x 1 - 12.7/90

Electronic equipmentpresumably radar
Complement12


Graphics

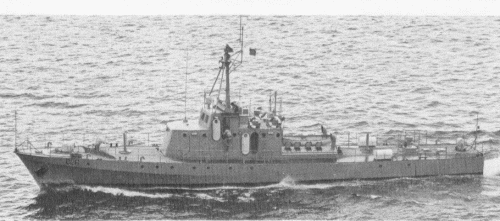

<i>C26 </i>1976
C26 1976


Project history

Former Libyan customs boats.

Modernizations

None.

Naval service

No significant events.
