SHAHEED ALI patrol craft (2007)
Shaheed Ali 2013
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Shaheed Ali | 322, 2007- P322 | Colombo DYd, Sri Lanka | 5.2005 | 12.2006 | 21.4.2007 | in service (2020) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 300 |
| Length, m | 35.3 |
| Breadth, m | 7.00 |
| Draught, m | 1.35 |
| No of shafts | 2 waterjets |
| Machinery | 2 Cummins KTA50M2 diesels |
| Power, h. p. | 3630 |
| Max speed, kts | 28 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 2 x 1 - 7.6/90 |
| Electronic equipment | JMA 2344, JMA 5320/7 radars |
| Complement | 15 |
Graphics

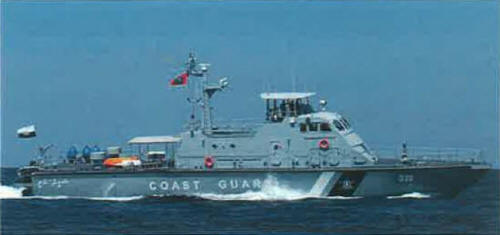

Shaheed Ali 2013
Project history
Large patrol craft.
Modernizations
None.
Naval service
No significant events.
