MALDIVE ISLANDS
COAST GUARD
LC1 landing craft (1999)
L301 2012
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
LC1, 2007- L301 |
Colombo DYd, Sri Lanka: LC1 |
1999: LC1 |
none |
none |
in service (2020): L301 |
Technical data
| Displacement standard, t | 33 |
|---|---|
| Displacement full, t | |
| Length, m | 20.9 |
| Breadth, m | 5.00 |
| Draught, m | 0.70 |
| No of shafts | 2 waterjets |
| Machinery | 2 MAN-B&W D2842 LE401 diesels |
| Power, h. p. | |
| Max speed, kts | 20 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 500(18) |
| Armament | 2 x 1 - 7.6/90 |
| Military load | troops, cargo |
| Electronic equipment | JMA 3253 radar |
| Complement | 7 |
Graphics

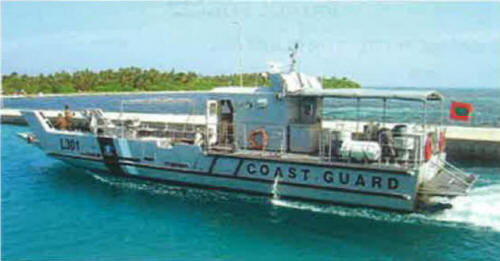

L301 2012
Project history
Small landing craft, intended for support of island bases.
Modernizations
None.
Naval service
No significant events.
