GHAZEE patrol craft (2007)
Ghazee 2013
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Ghazee | 331, 2007- P802 | Colombo DYd, Sri Lanka | 8.2006 | 6.2007 | 22.12.2007 | in service (2020) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 400 |
| Length, m | 42.3 |
| Breadth, m | 7.20 |
| Draught, m | 1.60 |
| No of shafts | 2 + 1 waterjet |
| Machinery | 3 Cummins KTA50M2 diesels |
| Power, h. p. | 5440 |
| Max speed, kts | 30 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 30/80 Medak CRN-91, 2 x 1 - 7.6/90 |
| Electronic equipment | JMA 2344, JMA 5320/7 radars |
| Complement | 27 |
Graphics

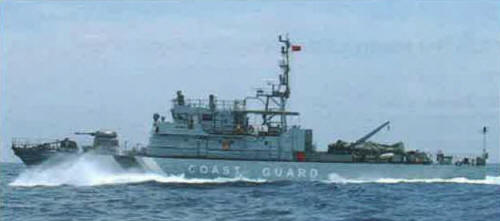

Ghazee 2013
Project history
Large patrol craft.
Modernizations
None.
Naval service
No significant events.
