NAVYPEDIA

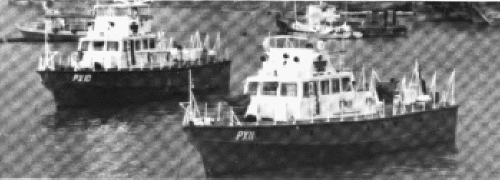

Shahbandar ang Sangsetia 1975

Ships

Names	Builders	Completed	Losses	Transfers	Discarding
PX1 Mahkota PX2 Temenggong PX3 Hulubalang PX4 Maharajesetia PX5 Maharajelela, 2012- 2950 Gemia PX6 Pahlawan PX7 Bentara PX8 Periwa PX9 Pertanda, 2012- 2951 Rawa PX10 Shahbandar PX11 Sangsetia PX12 Laksmana PX13 Pekan PX14 Kelang PX15 Kuala Kangsar PX16 Arau, 2012- 2952 Peringgi PX17 Sri Gumantong PX18 Sri Labuan PX19 Alor Star PX20 Kota Bahru	Vosper, Singapore: PX1-20	1963-1970: PX1-20	none	none	1992-1993: PX1-4, 7, 8, 13, 14 2004-2005: PX6, 10-12, 15, 17, 18 2017-18: PX19, 20 in service (2019): 2950-2952

Technical data

Displacement standard, t
Displacement full, t	85
Length, m	26.3
Breadth, m	5.70
Draught, m	1.45
No of shafts	2
Machinery	2 Mercedes-Benz MB820Db diesels
Power, h. p.	2460
Max speed, kts	25
Fuel, t	diesel oil
Endurance, nm(kts)	700(15)
Armament	2 x 1 - 20/70 Mk 10, 1 x 1 - 7.6/90
Electronic equipment	KH14/9 radar
Complement	15

Graphics

Project history

Class was operated by Royal Malaysian Marine Police except PX17 and PX18 served in Sabah.

Modernizations

None.

Naval service

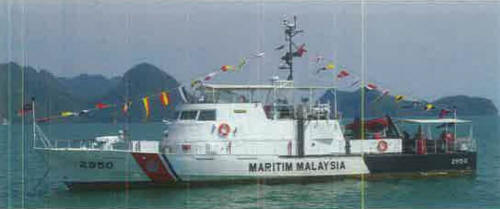

Three boats (Nos 2950-2952) were transferred to Maritme Enforcement Agency in 2012. Sri Gumangtong and Sri Labuan served till 1990 under the flag of Sabah Maritime Police.
