MADAGASCAR
ESCORTS
MATSILO patrol ship (1976/1996)
Matsilo 1999
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Matsilo (ex-Chamois) | Ch de la Perriere, Lorient, France | 30.4.1976 | 24.9.1976 // 5.1996 | discarded 2009 |
Technical data
| Displacement standard, t | 305 |
|---|---|
| Displacement full, t | 500 |
| Length, m | 37.0 pp 41.6 oa |
| Breadth, m | 7.50 |
| Draught, m | 3.18 |
| No of shafts | 2 |
| Machinery | 2 SACM-Wärtilsä UD30 V16M3 diesels |
| Power, h. p. | 2800 |
| Max speed, kts | 14.5 |
| Fuel, t | diesel oil 75 |
| Endurance, nm(kts) | 7200(12) |
| Armament | 2 x 1 - 12.7/90 |
| Military load | 100 t of cargo |
| Electronic equipment | Decca 1226 radar |
| Complement | 20 |
Graphics

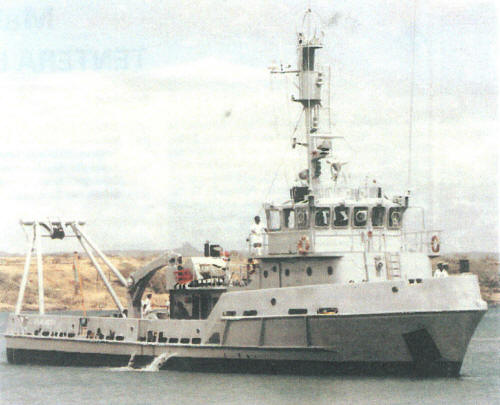

Matsilo 1999
Project history
Former French local support tender, used as a general-purpose cargo transport, tug, patrol and training ship. Can carry 100t of cargo on the deck, 125t of fuel and 40t of water.
Modernizations
None.
Naval service
No significant events.
