301 riverine patrol boats (1970/1991)
304 2007 Many thanks to Dmitiy Babuchev for correction of information on this page
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
301 (ex-ПЧ301 [PČ301) 303 - 306 (ex-ПЧ303-306 [PČ303-306]) |
Tivat SYd, Yugoslavia: 301-304, 306 |
1970 // 1991: 301-304, 306 |
none |
none |
1992: 301 1995: 302, 306 in service (2020): 303, 304 |
Technical data
| Displacement standard, t | 23 |
|---|---|
| Displacement full, t | 24 |
| Length, m | 17.0 |
| Breadth, m | 3.60 |
| Draught, m | 0.85 mean 1.60 max |
| No of shafts | 2 |
| Machinery | 2 diesels |
| Power, h. p. | 464 |
| Max speed, kts | 15.1 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1460(11.6) |
| Armament | 1 x 1 - 20/90 M71, 7 x 1 - 7.6/90 |
| Military load | 30 troops or combat swimmers |
| Electronic equipment | Decca 101 radar |
| Complement | 7 |

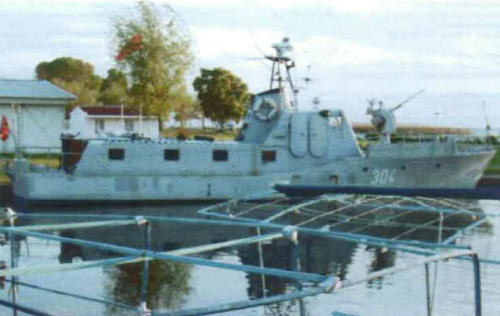

Graphics
304 2007 Many thanks to Dmitiy Babuchev for correction of information on this page
Project history
Multipurpose patrol, troop transport and logistic support boats for service on lakes and rivers. Former Yugoslavian.
Modernizations
None.
Naval service
No significant events.
