Aukštaitis 2003

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Žemaitis (ex-МПК-44 [MPK-44], ex- Комсомолец Латвии [Komsomolets Latvii], ex- МПК-44 [MPK-44])	F11	104	Leninskaya Kuznitsa, Kiev, USSR	18.7.1977	29.3.1980	25.10.1980 // 28.4.1993	stricken 10.2008

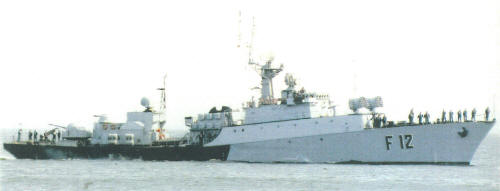

Aukštaitis (ex-МПК-108 [MPK-108])	F12	722	Krasnyy Metallist, Zelenodolsk, USSR	14.5.1979	6.2.1981	25.9.1981 // 28.4.1993	stricken 11.2009

Technical data

Displacement standard, t	835
Displacement full, t	990
Length, m	71.1
Breadth, m	10.2
Draught, m	3.54
No of shafts	3
Machinery	CODAG, 1 M-8 gas turbine + 2 M-507A diesels
Power, h. p.	38000 (18000 + 20000)
Max speed, kts	32
Fuel, t	diesel oil
Endurance, nm(kts)	2700(14)
Armament	1 x 2 Osa-M SAM (20 9M33), 1 x 2 - 57/50 AK-725, 1 x 6 - 30/54 AK-630/M, 2 x 2 - 533 TT, 2 x 12 RBU-6000 Smerch-2 ASWRL, 2 DCR, 18 mines
Electronic equipment	MR-302 Rubka, 4R-33, MR-123 Vympel-A, Don radars, MG-322T Amgun', MG-339T Shelon', MGS-407K sonars, MI-110K/KM, MI-110R wake detectors, Bizan'-4B ECM suite
Complement	83

Standard scale images

Graphics

Project history

Former Soviet project 1124 small ASW ships.

Modernizations

None.

Naval service

No significant events.
