NAVYPEDIA


Marzoug 2004

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
صبحي [Subahi]	P308		Océa, St. Nazaire, France		10.7.2003	6.8.2003	in service (2020)
جابر [Jaberi]	P309		Océa, St. Nazaire, France		1.10.2003	12/2003	in service (2020)
ساد [Saad]	P310		Océa, St. Nazaire, France		14.11.2003	2/2004	in service (2020)
أحمدي [Ahmadi]	P311		Océa, St. Nazaire, France		13.1.2004	2/2004	in service (2020)
نايف [Naif]	P312		Océa, St. Nazaire, France		4.3.2004	5/2004	in service (2020)
ظفير [Thafir]	P313		Océa, St. Nazaire, France		5.5.2004	7/2004	in service (2020)

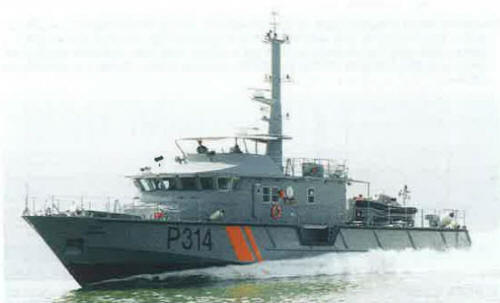

مرزوج [Marzoug]	P314		Océa, St. Nazaire, France		1.7.2004	9/2004	in service (2020)
مشاهر [Mash'hoor]	P315		Océa, St. Nazaire, France		27.10.2004	1/2005	in service (2020)
واضح [Waddah]	P316		Océa, St. Nazaire, France		1.2005	3/2005	in service (2020)

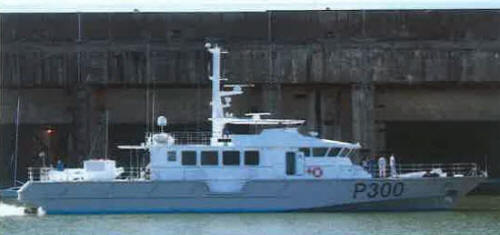

طروب [Taroub], 2005- ريان [Rayyan]	P317, 2005- P300		Océa, St. Nazaire, France		25.7.2005	23.8.2005	in service (2020)

Technical data

Displacement standard, t
Displacement full, t	115
Length, m	29.9 pp 35.2 oa
Breadth, m	6.80
Draught, m	1.25
No of shafts	2 waterjets
Machinery	2 MTU 12V4000 M70 diesels
Power, h. p.	4600
Max speed, kts	30
Fuel, t	diesel oil
Endurance, nm(kts)	700(12)
Armament	3 x 1 - 12.7/90
Electronic equipment	2x Decca Bridgemaster radars, Amiris e/o system
Complement	16

Graphics

Project history

FPB110 design, ordered in 2002. Taroub was equipped as VIP/flag craft.

Modernizations

None.

Naval service

No significant events.
