SOHN WON IL submarines (2007-)

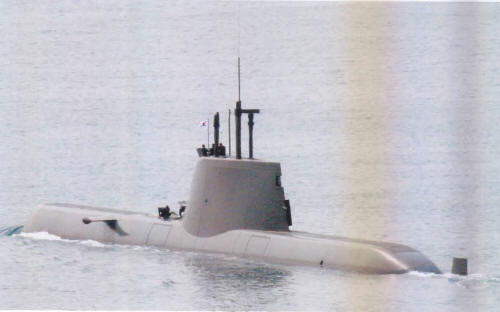

Sohn Won Il 2008
Ships
| Name | No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|
| 손원일 [Sohn Won Il] | 072 | Hyundai, Ulsan | 2003 | 9.6.2006 | 27.12.2007 | in service (2019) |
| 정지 [Jeongji] | 073 | Hyundai, Ulsan | 2004 | 13.6.2007 | 2.12.2008 | in service (2019) |
| 안중근 [Ahn Jung Geun] | 075 | Hyundai, Ulsan | 2005 | 4.6.2008 | 30.11.2009 | in service (2019) |
| 김좌진 [Kim Jwa Jin] | 076 | Daewoo, Okpo | 2008 | 13.8.2013 | 30.12.2014 | in service (2019) |
| 윤봉길 [Yun Bong Jil] | 077 | Hyundai, Ulsan | 2009 | 3.7.2014 | 20.6.2016 | in service (2019) |
| 유관순 [Yu Gwan Sun] | 078 | Daewoo, Okpo | 2010 | 8.5.2015 | 10.7.2017 | in service (2019) |
| 홍범도 [Hong Beon Do] | 079 | Hyundai, Ulsan | 2011 | 5.4.2016 | 19.1.2018 | in service (2019) |
| 이범석 [Lee Beom Seok] | 081 | Daewoo, Okpo | 2012 | 8.11.2016 | 2019 | building (2019) |
| 신돌석 [Shin Dol Seok] | 082 | Hyundai, Ulsan | 2013 | 7.9.2017 | 2019 | building (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement normal, t | 1700 / 1860 |
| Length, m | 65.3 |
| Breadth, m | 6.30 |
| Draught, m | 6.00 |
| No of shafts | 1 |
| Machinery | 2 MTU 16V396 diesel-generators, 1 Siemens Permasyn electric motor / 2 BZM120 fuel cell modules (AIP) |
| Power, h. p. | 2700 / 3875 / 326 |
| Max speed, kts | 12 / 21 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 7900(8) / 420(8) / 1248(4) |
| Armament | 8 - 533 TT (bow, 16, inc. Sub-Harpoon SSM (4 UGM-84C instead of 4 torpedoes), Baeksangeo) |
| Electronic equipment | Sphinx-D radar, IDRS sonar suite, LIG Next 1 ECM suite, TACM torpedo decoy launcher, ISUS 90-61 CCS |
| Complement | 27 |
| Diving depth operational, m | 400 (max.) |
Standard scale images
Sohn Won Il 2010
Graphics
Sohn Won Il 2008
Project history
Type 214 (KSS II). The design was selected in 2000. The submarines are being built in South Korea with the technical assistance of Germany's Howaldtswerke. The Type 214 design is based on the Type 212 and an enhanced Type 209, with the air-independent propulsion and other export-approved systems derived from the German-Italian Type 212 submarine. Inner and outer hulls are of austenitic steel. The submarines have 10% reserve buoyancy. Maximum diving depth is 400 meters. Have the hydrogen peroxide Siemens Polymer Electrolite Membrane (PEM) fuel-cell an-independent auxiliary propulsion system. Employ the STN Atlas Elektronik ISUS 90 combat data system. The sonar array includes cylindrical MF passive array forward, an MF/LF passive flank system (with three arrays per side), a towed LF passive array, an active ranging set and a bow-mounted active mine-avoidance set. Four of the eight weapons tubes have expulsion systems to enable launching antiship missiles, the others will be of the swim-out variety.
Modernizations
None.
Naval service
No significant events.
