YOON YOUNGHA corvettes (2008-2018)

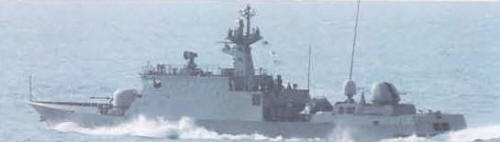

Yoon Youngha 2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 윤영하 [Yoon Youngha] | 711 | Hanjin, Pusan | 28.6.2007 | 17.12.2008 | in service (2019) | ||
| 한상국 [Han Sanggook] | 712 | STX, Jinhae | 23.9.2009 | 15.9.2011 | in service (2019) | ||
| 조천형 [Jo Chunhyung] | 713 | STX, Jinhae | 23.9.2009 | 4.10.2011 | in service (2019) | ||
| 황도현 [Hwang Dohyun] | 715 | STX, Jinhae | 11.12.2009 | 11.11.2011 | in service (2019) | ||
| 서후원 [Suh Hoowon] | 716 | STX, Jinhae | 11.12.2009 | 26.9.2011 | in service (2019) | ||
| 박동혁 [Park Donghyuk] | 717 | Hanjin, Pusan | 28.7.2010 | 26.9.2011 | in service (2019) | ||
| 현시학 [Hyun Sihak] | 718 | Hanjin, Pusan | 28.7.2010 | 28.10.2011 | in service (2019) | ||
| 정긍모 [Jung Geungmo] | 719 | Hanjin, Pusan | 2.11.2010 | 19.12.2011 | in service (2019) | ||
| 지덕칠 [Ji Deokchil] | 721 | Hanjin, Pusan | 2.11.2010 | 23.12.2011 | in service (2019) | ||
| 임병래 [Lim Byeongrae] | 722 | STX, Jinhae | 20.11.2012 | 6.9.2013 | in service (2019) | ||
| 홍시욱 [Hong Siuk] | 723 | STX, Jinhae | 20.11.2012 | 10.10.2013 | in service (2019) | ||
| 홍대선 [Hong Daeseon] | 725 | STX, Jinhae | 20.11.2012 | 5.11.2013 | in service (2019) | ||
| 한문식 [Han Munsik] | 726 | Hanjin, Pusan | 24.4.2013 | 28.1.2014 | in service (2019) | ||
| 김창학 [Kim Changhak] | 727 | Hanjin, Pusan | 24.4.2013 | 4.3.2014 | in service (2019) | ||
| 박동진 [Park Dongjin] | 728 | Hanjin, Pusan | 24.4.2013 | 1.4.2014 | in service (2019) | ||
| 김수현 [Kim Soohyun] | 729 | STX, Jinhae | 30.4.2014 | 2.10.2014 | in service (2019) | ||
| 전병익 [Jeon Byeongik] | 732 | STX, Jinhae | 24.6.2016 | 11.1.2018 | in service (2019) | ||
| 이병철 [Lee Byungchul] | 733 | STX, Jinhae | 30.4.2014 | 3.12.2014 | in service (2019) |
Technical data
| Displacement standard, t | 440 |
|---|---|
| Displacement full, t | 570 |
| Length, m | 63.0 |
| Breadth, m | 9.00 |
| Draught, m | 3.00 |
| No of shafts | 2 waterjets |
| Machinery | 711: CODAG: 2 General Electric LM-500 gas turbines + 2 MTU 12V595 TE90 diesels 712, 713, 715-719, 721-723, 725-729, 731, 732: CODAG: 2 General Electric LM-500 gas turbines + 2 MTU 16V1163 TB93 diesels |
| Power, h. p. | 711: 12260 + 8680 = 20940 712, 713, 715-719, 721-723, 725-729, 731, 732: 12260 + 15880 = 28140 |
| Max speed, kts | 711: 40 712, 713, 715-719, 721-723, 725-729, 731, 732: 44 |
| Fuel, t | diesel / gas turbine oil |
| Endurance, nm(kts) | 2000(15) |
| Armament | 711, 712: 2 x 2 Hae Sung SSM (4 Hae Sung), 1 x 1 Shingung SAM (~8 Shingung), 1 x 1 - 76/62 OTO-Melara Compact, 1 x 2 - 40/70 No Bong, 2 x 1 - 12.7/90 713, 715-719, 721-723, 725-729, 731, 732: 2 x 2 Hae Sung SSM (4 Hae Sung), 1 x 1 Shingung SAM (~8 Shingung), 1 x 1 - 76/62 Hyundai Wia, 1 x 2 - 40/70 No Bong, 2 x 1 - 12.7/90 |
| Electronic equipment | SPS-100K, SPS-540K, CEROS 200 9LV327 Mk3E radars, Hanwha e/o sustem, SLQ-200(v)K Sonata ECM suite, 2x KDagaie Mk 2 decoy RL, STC CCS |
| Complement | 40 |
Standard scale images
Yoon Youngha 2010
Graphics
Yoon Youngha 2008
Project history
'Gumdoksuri' (PKM-X) design, replacement for the Chamsuri patrol craft. Originally they were known as PKX (Patrol Killer Experimental) class.
Modernizations
None.
Naval service
No significant events.
