SINSEONG patrol ships (1942-1945/1963-1967)
Sinseong
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 신성 [Sinseong] (ex-Ptarmigan) | 1001, 1980- 711 | Savannah Machine & Foundry Co., USA | 3.1944 | 15.7.1944 | 1.1945 // 7.1963 | stricken 1984 | |
| 순천 [Suncheon] (ex-Speed) | 1002, 1980- 712 | American SB, Cleveland, USA | 11.1941 | 18.4.1942 | 10.1942 // 11.1967 | stricken 1984 | |
| 거제 [Geoje] (ex-Dextrous) | 1003, 1980- 713 | Gulf SB, Madisonville, USA | 1943 | 17.6.1943 | 9.1943 // 12.1967 | stricken 1984 |
Technical data
| Displacement standard, t | 890 |
|---|---|
| Displacement full, t | 1250 |
| Length, m | 65.5 wl 67.4 oa |
| Breadth, m | 9.80 |
| Draught, m | 3.28 full load |
| No of shafts | 2 |
| Machinery | 2 electric motors, 2 diesel-generators |
| Power, h. p. | 2880 |
| Max speed, kts | 18 |
| Fuel, t | diesel oil 200 |
| Endurance, nm(kts) | 6370 (16.5) |
| Armament | 2 x 1 - 76/50 Mk 22, 2 x 2 - 40/60 Mk 1, 2 x 2 - 20/70 Mk 24, 2 x 3 - 324 TT, 1 x 24 - 178 Hedgehog Mk 10 ASWRL, 4 DCT, 2 DCR |
| Electronic equipment | radar, QCU sonar |
| Complement | 110 |
Standard scale images

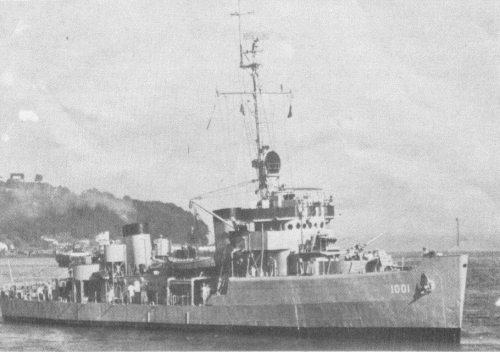

Sinseong 1970
Graphics
Sinseong
Project history
Former USN Auk class fleet minesweepers. The minesweeping gear was removed before the transfer and a second 76mm gun was fitted aft, ASW was augmented.
Modernizations
None.
Naval service
No significant events.
