TAEGUK 1 patrol ships (1978-1982)

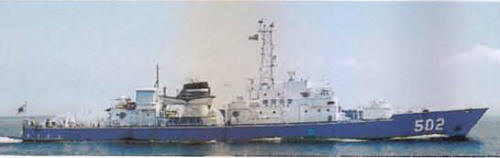

Taeguk 2 2006
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 태극 1 [Taeguk 1] | 501 | Hanjin, Chinhae | 25.12.1978 | stricken 2008 | |||
| 태극 2 [Taeguk 2] | 502 | Hanjin, Chinhae | 1979 | stricken 2008 | |||
| 태극 3 [Taeguk 3] | 503 | Hanjin, Chinhae | 5.5.1979 | stricken 2008 | |||
| 태극 5 [Taeguk 5] | 505 | Korea SB, Pusan | 31.5.1980 | stricken 2009 | |||
| 태극 6 [Taeguk 6] | 506 | Hyundai, Ulsan | 28.9.1981 | stricken 2009 | |||
| 태극 7 [Taeguk 7] | 507 | Hanjin, Chinhae | 31.7.1982 | stricken 2009 |
Technical data
| Displacement standard, t | 410 |
|---|---|
| Displacement full, t | 500 |
| Length, m | 60.8 |
| Breadth, m | 8.00 |
| Draught, m | 2.29 |
| No of shafts | 2 |
| Machinery | PC501, 502, 505-507: 2 Niigata-Pielstick 12PA6 V280 diesels PC503: 2 Wärtsilä-Nohab diesels |
| Power, h. p. | PC501, 502, 505-507: 9600 PC503: 10880 |
| Max speed, kts | 24 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2400(20) |
| Armament | 1 x 1 - 40/60 Mk 3, 2 x 1 - 20/70 Mk 10, 2 x 1 - 7.6/90 |
| Electronic equipment | 2x radars |
| Complement | 39 |
Standard scale images
Taeguk 1 1990
Graphics
Taeguk 2 2006
Project history
Intended for rescue and inspection duties.
Modernizations
None.
Naval service
No significant events.
