HAEULI 1 patrol craft (1990-1994)

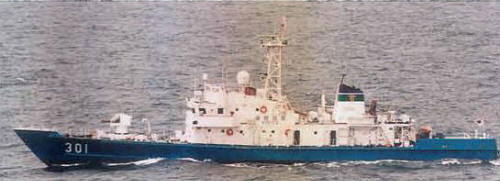

Haeuli 1 2000
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 해우리 1 [Haeuli 1] | 301 | Daewoo, Okpo | 20.4.1990 | in service (2019) | |||
| 해우리 2 [Haeuli 2] | 302 | Hyundai, Ulsan | 15.12.1990 | in service (2019) | |||
| 해우리 3 [Haeuli 3] | 303 | Hyundai, Ulsan | 20.12.1991 | in service (2019) | |||
| 해우리 5 [Haeuli 5] | 305 | Hyundai, Ulsan | 12/1991 | in service (2019) | |||
| 해우리 6 [Haeuli 6] | 306 | Hyundai, Ulsan | 1993 | in service (2019) | |||
| 해우리 7 [Haeuli 7] | 307 | Hyundai, Ulsan | 10.4.1994 | in service (2019) |
Technical data
| Displacement standard, t | 300 |
|---|---|
| Displacement full, t | 430 |
| Length, m | 53.7 pp 55.5 oa |
| Breadth, m | 7.40 |
| Draught, m | 2.48 |
| No of shafts | 2 |
| Machinery | 2 MTU 16V396 TB83 diesels |
| Power, h. p. | 1990 |
| Max speed, kts | 19 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2100(17) |
| Armament | 1 x 3 - 20/76 Sea Vulcan, 1 x 1 - 20/70 Mk 10, 4 x 1 - 12.7/90 |
| Electronic equipment | 2x radars |
| Complement | 14 |
Graphics
Haeuli 1 2000
Project history
Equipped for search-and-rescue service and for towing. 300t class.
Modernizations
None.
Naval service
No significant events.
