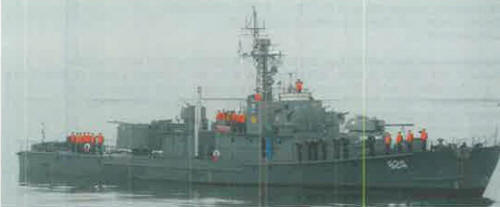

624 2011

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
i	623		North Korea			1975-85	in service (2019)
ii	624		North Korea			1975-85	in service (2019)
iii			North Korea			1975-85	in service (2019)
iv			North Korea			1975-85	in service (2019)
v			North Korea			1975-85	in service (2019)
vi			North Korea			1975-85	in service (2019)
vii			North Korea			1975-85	in service (2019)

Technical data

Displacement standard, t	385
Displacement full, t	410
Length, m	59.8
Breadth, m	7.20
Draught, m	2.00
No of shafts	4
Machinery	4 40D diesels
Power, h. p.	8800
Max speed, kts	30
Fuel, t	diesel oil
Endurance, nm(kts)	2000(12)
Armament	1 x 1 - 85/55 ZIS-S-53, 1 x 2 - 57/70 type 66, 1 x 2 - 25/80 type 61M, 2 x 2 - 14.5/89, 2 x 5 type 81 ASWRL, 2 DCR
Electronic equipment	type 351, nav. radars, Tamir-11 sonar, 2x decoy RL
Complement	80

Standard scale images

Graphics

Project history

Korean design based on Chinese 'Hainan' class but with lower superstructure and less freeboard.

Modernizations

none

Naval service

One craft was badly damaged by gunfire of South Korean ships 15.6.1999 but was later repaired.
