'CHODO' large patrol craft (mid-1960s)







Ships


Name No Yard No Builder Laid down Launched Comp Fate
(i)     North Korea     mid-1960s discarded early 1990s
(ii)     North Korea     mid-1960s discarded late 1990s
(iii)     North Korea     mid-1960s discarded late 1990s
(iv)     North Korea     mid-1960s discarded late 1990s


Technical data


Displacement standard, t
Displacement full, t

130

Length, m

42.7

Breadth, m

5.80

Draught, m

2.60

No of shafts

2

Machinery

2 diesels

Power, h. p.

6000

Max speed, kts

25

Fuel, t

diesel oil

Endurance, nm(kts)2000(10)
Armament

4 x 1 - 37/63 70K, 2 x 2 - 14.5/93

Electronic equipment

Zarnitsa, Don radars

Complement40

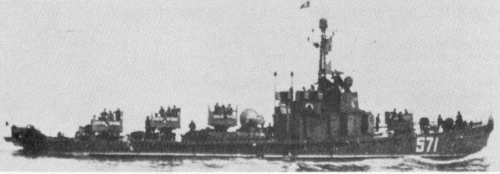

Standard scale images


1970
1970


Graphics





Project history

Korean design.

Modernizations

none

Naval service

No significant events.
