NAVYPEDIA


1972

Ships

Names	Builders	Commissioned	Losses	Transfers	Discarding
42 boats	USSR: 27 boats China: 15 boats	1949-1960 // 1953-1972: 27 boats 1956-1966 // 1966-1978: 15 boats	none	none	early 1980s: 2 boats late 1980s: 8 boats early 1990s: 8 boats late 1990s: 12 boats 2000-2002: 12 boats

Technical data

Displacement standard, t	57
Displacement full, t	67
Length, m	25.5
Breadth, m	6.18
Draught, m	1.24
No of shafts	4
Machinery	4 M-50F diesels
Power, h. p.	4800
Max speed, kts	43
Fuel, t	diesel oil
Endurance, nm(kts)	1000(14)
Armament	2 x 2 - 25/80 2M-3M, 2 x 1 - 533 TT or 18 mines, 8 DC
Electronic equipment	Reya radar
Complement	14

Standard scale images

Graphics

Project history

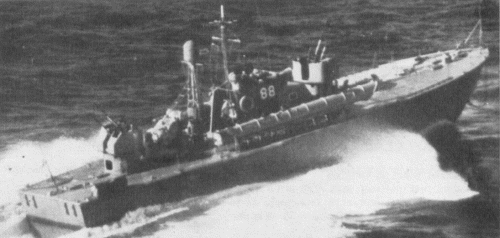

Former Soviet and Chinese Project 183  MTBs.

Modernizations

none

Naval service

No significant events.
