MAMBA patrol craft (1974)





Mamba 1974

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Mamba P3100   Brooke Marine, Lowestoft, UK 17.2.1972 6.11.1973 7.2.1974 retired 2000


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate Mamba P3100   Brooke Marine, Lowestoft, UK 17.2.1972 6.11.1973 7.2.1974 retired 2000

Technical data


Displacement standard, t

130
Displacement full, t

160
Length, m

37.5
Breadth, m

6.86
Draught, m

1.78
No of shafts

2
Machinery

2 Paxman Valenta 16YJCM diesels
Power, h. p.

4000
Max speed, kts

25
Fuel, t

diesel oil
Endurance, nm(kts)

3500(13)
Armament

2 x 1 - 40/60 Mk 7
Electronic equipment

Decca RM-916 radar
Complement

25


Graphics

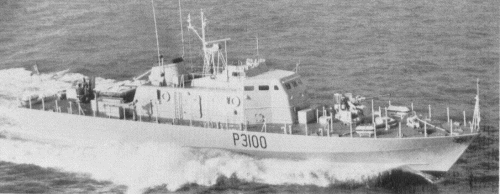

<i>Mamba </i>1974
Mamba 1974


Project history

Brooke Marine design.

Modernizations

1982: - 2 x 1 - 40/60, Decca RM-916 radar; + 4 x 1 Gabriel II SSM (4 Gabriel II), 1 x 2 - 30/90 GCM-A02, Decca AC1226, RTN-10X radars

Naval service

No significant events.
