SARDAR patrol craft (2006-2019)





Sardar 2011

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Сардар [Sardar] 201   Zenit, Oral   27.5.2006 12.2006 in service (2020)
Сакшы [Sakshy] 202   Zenit, Oral   2008 2008 in service (2020)
Жеңiс [Zhenis] 203   Zenit, Oral   9.5.2010 2010 in service (2020)
Семсер [Semser] 204   Zenit, Oral   10.5.2012 2012 in service (2020)
Сарбаз [Sarbaz] 205   Zenit, Oral   29.4.2016 2016 in service (2020)
Нұр-Сұлтан [Nur-Sultan] 206   Zenit, Oral   2017 9.2019 in service (2020)


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate Сардар [Sardar] 201   Zenit, Oral   27.5.2006 12.2006 in service (2020) Сакшы [Sakshy] 202   Zenit, Oral   2008 2008 in service (2020) Жеңiс [Zhenis] 203   Zenit, Oral   9.5.2010 2010 in service (2020) Семсер [Semser] 204   Zenit, Oral   10.5.2012 2012 in service (2020) Сарбаз [Sarbaz] 205   Zenit, Oral   29.4.2016 2016 in service (2020) Нұр-Сұлтан [Nur-Sultan] 206   Zenit, Oral   2017 9.2019 in service (2020)

Technical data


Displacement standard, t210
Displacement full, t240
Length, m

41.8
Breadth, m

7.80
Draught, m

2.50
No of shafts

2
Machinery

2 Deutz TBD620 V16 diesels
Power, h. p.

6120
Max speed, kts

28
Fuel, t

diesel oil
Endurance, nm(kts)2300(12)
Armament

201: 1 x 1 - 30/82 2A42, 2 x 1 - 12.7/79

202-206: 1 x 2 - 25/82 2M-3M, 2 x 1 - 12.7/79
Electronic equipmentradar
Complement21


Graphics

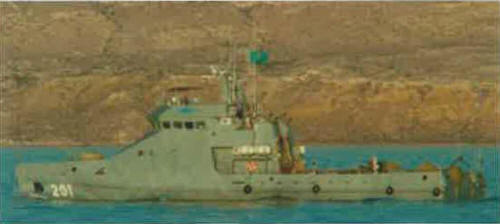

<i>Sardar </i>2011
Sardar 2011


Project history

Coast Guard. Project 22180 'Bars'. Steel hull and aluminium superstructure. 7m RHIB is carried on the ramp aft. Supply, patrol and SAR ships.

Modernizations

None.

Naval service

No significant events.

Many Thanks to Dmitriy Babichev for additional information on this page.
