NAIZA patrol boats (2009-2016)
Nayza 2013
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
505 Найза [Nayza] 506 Есiл [Yesil] 507 Егемен [Yegemen] 508 Калкан [Kalkan] 509 Мерген [Mergen] 512 |
Zenit, Oral: 505-509, 512 |
2009-2011: 505-508 2015: 509, 512 |
None |
None |
in service (2020): 505-509, 512 |
Technical data
| Displacement standard, t | 26 |
|---|---|
| Displacement full, t | |
| Length, m | 20.2 |
| Breadth, m | 4.00 |
| Draught, m | 1.00 |
| No of shafts | 2 |
| Machinery | 2 diesels |
| Power, h. p. | |
| Max speed, kts | 50 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 400(12) |
| Armament | 1 x 1 - 12.7/79 |
| Electronic equipment | radar |
| Complement | 8 |
Graphics

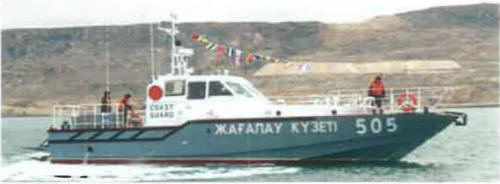

Nayza 2013
Project history
Coast Guard. Project FC19.
Modernizations
None.
Naval service
No significant events.
