SHAPSHAN patrol boats (1980-1981/2006)

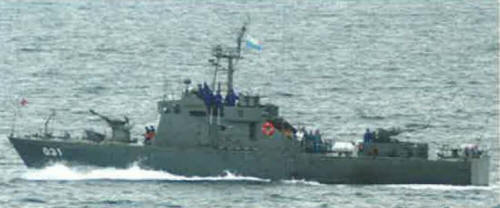

Shapshan 2012

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Шапшан [Shapshan] (ex-기러기 251 [Gireogi 251]) 031   Korea Tacoma, Chinhae, South Korea     1981 // 2006 retired 2016
Батыр [Batyr] (ex-기러기 239 [Gireogi 239]) 032   Korea Tacoma, Chinhae, South Korea     1980 // 2006 retired 2014
Iзет [Izet] (ex-기러기 233 [Gireogi 233]) 033   Korea Tacoma, Chinhae, South Korea     1980 // 2006 retired 2016


Technical data


Displacement standard, t

113
Displacement full, t

150
Length, m

31.3 pp 32.9 - 33.1 oa
Breadth, m

6.92
Draught, m

1.75 hull 2.45 propellers
No of shafts

2
Machinery

2 MTU 16V538 TB90 diesels
Power, h. p.

10800
Max speed, kts

34
Fuel, t

diesel oil 15
Endurance, nm(kts)

1000(20)
Armament

1 x 1 - 40/60 Mk 3, 1 x 2 - 30/75 Emerlec EX-30, 2 x 1 - 20/70 Mk 10
Electronic equipmentRaytheon 1645 radar
Complement

31


Standard scale images


<i>Gireogi 212 </i>1980
Gireogi 212 1980


Graphics


<i>Shapshan </i>2012
Shapshan 2012


Project history

Former South Korean 'Sea Dolphin' class boats.

Modernizations

None.

Naval service

No significant events.
