No 620 patrol launches (2008)





621 2012

Ships


Names Builders Commissioned Losses Transfers Discarding

620 - 622

SAFE Boats, Port Orchard, USA: 620-622

2008: 620-622

none

none

in service (2020): 620-622



Technical data


Displacement standard, t
Displacement full, t

13

Length, m

12.8

Breadth, m

4.10

Draught, m

0.80

No of shafts

2 waterjets

Machinery

2 Caterpillar C9 diesels

Power, h. p.

550

Max speed, kts

36

Fuel, t

diesel oil

Endurance, nm(kts)

400(21)

Armament

2 x 1 - 7.6/90

Electronic equipmentFuruno radar
Complement

3



Graphics

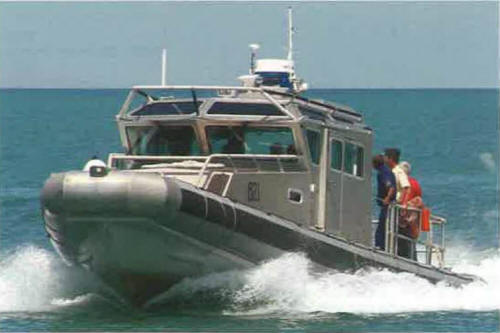

<i>621 </i>2012
621 2012


Project history

'Archangel' class. Aluminium construction and foam collar.

Modernizations

None.

Naval service

No significant events.
