SORYU submarines (2009-)

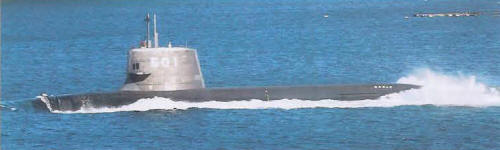

Soryu 2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| そうりゅう [Soryu] | SS501 | Mitsubishi, Kobe | 31.3.2005 | 5.12.2007 | 30.3.2009 | in service (2019) | |
| うんりゅう [Unryu] | SS502 | Kawasaki, Kobe | 31.3.2006 | 15.10.2008 | 25.3.2010 | in service (2019) | |
| はくりゅう [Hakuryu] | SS503 | Mitsubishi, Kobe | 6.2.2007 | 16.10.2009 | 14.3.2011 | in service (2019) | |
| けんりゅう [Kenryu] | SS504 | Kawasaki, Kobe | 31.3.2008 | 15.11.2010 | 16.3.2012 | in service (2019) | |
| ずいりゅう [Zuiryu] | SS505 | Mitsubishi, Kobe | 16.3.2009 | 20.10.2011 | 6.3.2013 | in service (2019) | |
| こくりゅう [Kokuryu] | SS506 | Kawasaki, Kobe | 21.1.2011 | 31.10.2013 | 9.3.2015 | in service (2019) | |
| じんりゅう [Jinryu] | SS507 | Mitsubishi, Kobe | 14.2.2012 | 8.10.2014 | 7.3.2016 | in service (2019) | |
| せきりゅう [Sekiryu] | SS508 | Kawasaki, Kobe | 15.3.2013 | 2.11.2015 | 13.3.2017 | in service (2019) | |
| せいりゅう [Seiryu] | SS509 | Mitsubishi, Kobe | 22.10.2013 | 12.10.2016 | 12.3.2018 | in service (2019) | |
| しょうりゅう [Shoryu] | SS510 | Kawasaki, Kobe | 28.1.2015 | 6.11.2017 | 2019 | building (2019) | |
| おうりゅう [Oryu] | SS511 | Mitsubishi, Kobe | 16.11.2015 | 4.10.2018 | 2020 | building (2019) | |
| SS512 | Kawasaki, Kobe | 27.1.2017 | 2019 | 2021 | building (2019) | ||
| SS513 | Mitsubishi, Kobe | 30.12.2017 | 2020 | 2022 | building (2019) | ||
| SS514 | Kawasaki, Kobe | 2019 | 2021 | 2023 | building (2019) |
Technical data
| Displacement standard, t | 2950 |
|---|---|
| Displacement normal, t | / 4200 |
| Length, m | 83.7 |
| Breadth, m | 9.10 |
| Draught, m | 8.50 |
| No of shafts | 1 |
| Machinery | 501-510: 2 Kawasaki-MAN 12V25/25S diesel-generators, 1 electric motor / 4 Stirling 4V-275R engines 511-513: 2 Kawasaki-MAN 12V25/25S diesel-generators, 1 electric motor |
| Power, h. p. | 501-510: 3900 / 8000 / 470 511-513: 3900 / 8000 |
| Max speed, kts | 13 / 20 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | presumably 6100(7) / 500(4) |
| Armament | 6 - 533 HU-606 TT (bow, 20, inc/ Sub-Harpoon SSM (4 UGM-84)) |
| Electronic equipment | ZPS-6F radar, ZQQ-7, ZQR-1 sonars, NZLR-1B ECM suite, ZYQ-31 CCS |
| Complement | 65 |
| Diving depth operational, m | presumably 400 |
Standard scale images
Kenryu 2015
Graphics
Soryu 2008
Project history
Improved version of the Oyashio class; have X-configuration stern control surfaces; fitted with four Swedish-designed Stirling V4-275R Mk-II air-independent propulsion units. Later units are equipped with lithium-ion batteries instead of AIP, receiving the same submerged endurance with significant simplified but more expensive construction.
Modernizations
None.
Naval service
No significant events.
