"Kaichu 5" coastal submarines (RO33) (1935 - 1937)





RO33

Ships


Name No Yard No Builder Laid down Launched Comp Fate
呂33 [RO33]     Kure K K 8.1933 10.10.1934 10.1935 sunk 29.8.1942
呂34 [RO34]     Mitsubishi, Kobe 4.1934 12.12.1935 5.1937 sunk 5.4.1943


Technical data


Displacement standard, t

700

Displacement normal, t

940 / 1200

Length, m

71.5 wl 75.7 oa

Breadth, m

6.70

Draught, m

3.95

No of shafts

2

Machinery

2 Kampon diesels / 2 electric motors

Power, h. p.

2900 / 1200

Max speed, kts

19 / 8.2

Fuel, t

diesel oil 95

Endurance, nm(kts)8000(12) / 90(3.5)
Armament

1 x 1 - 76/40 88-shiki, 1 x 1 - 13.2/76, 4 - 533 TT (bow, 10)

Electronic equipmentpresumably 93-shiki sonar, 93-shiki hydrophone
Complement

42 - 61

Diving depth operational, m75


Standard scale images


<i>RO33</i> 1942
RO33 1942


Graphics

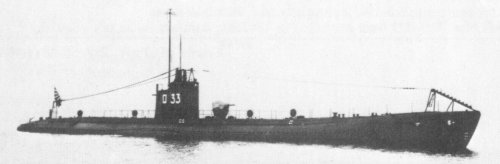

<i> RO33</i>
RO33


Project history

Kaichu 5 (Medium Admiralty 5) type. Built under 1st Supplementary programme of 1931. Design was based on construction of Kai-Toku-Chu type submarines, but had more powerful diesels and improved hull form. Double-hulled, endurance was about 30 days.

Modernizations

None.

Naval service

RO33 was sunk 29.8.1942 at Port Moresby by Australian destroyer Arunta. RO34 5.4.1943 was sunk off Russell Island (Solomons) by US destroyers O`Bannon and Strong.
