"Junsen 1" patrol submarines (I1) (1926 - 1929)
I1 1926
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 伊1 [I1] (ex-第74号艦 [74-go]) | Kawasaki, Kobe | 3/1923 | 15.10.1924 | 3.1926 | sunk 29.1.1943 | ||
| 伊2 [I2] (ex-第75号艦 [75-go]) | Kawasaki, Kobe | 8/1923 | 23.2.1925 | 7.1926 | sunk 7.4.1944 | ||
| 伊3 [I3] (ex-第76号艦 [76-go]) | Kawasaki, Kobe | 11/1923 | 8.6.1925 | 11.1926 | sunk 9.12.1942 | ||
| 伊4 [I4] | Kawasaki, Kobe | 4/1926 | 22.5.1928 | 12.1929 | sunk 25.12.1942 |
Technical data
| Displacement standard, t | 1970 |
|---|---|
| Displacement normal, t | 2135 / 2791 |
| Length, m | 94.0 pp 93.9 wl 97.5 oa |
| Breadth, m | 9.22 |
| Draught, m | 5.00 |
| No of shafts | 2 |
| Machinery | 2 MAN diesels / 2 electric motors |
| Power, h. p. | 6000 / 2600 |
| Max speed, kts | 18 / 8 |
| Fuel, t | diesel oil 175 |
| Endurance, nm(kts) | 24400(10) / 60(3) |
| Armament | 2 x 1 - 140/40 11-shiki, 2 x 1 - 7.7/87, 6 - 533 TT (4 bow, 2 stern, 20) |
| Complement | 92 |
| Diving depth operational, m | 80 |
Standard scale images

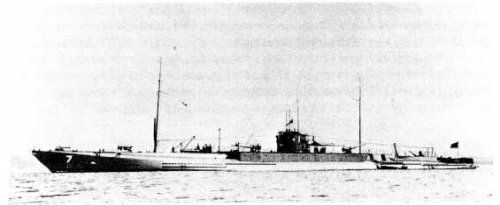

I1 1942
Graphics
I1 1926
Project history
Junsen 1 (Cruiser submarine 1) type. First submarine cruisers of IJN were built under the 1923-1928 programme. According to Naval staff plans, long-distance reconnaissance far away from own bases should become a basic purpose of cruiser submarines. It has defined a huge endurance in the technical project (24000nm). Drawings of German submarine cruiser U139 became a design basis. As she served as a prototype for fleet submarine of Kaidai 2 type, designs of fleet and cruiser submarines have appeared are close enough under the characteristics, but thus Junsen 1 was closer to German prototype. Double-hulled. CT and free board were protected by light armour. Endurance was about 60 days.
Modernizations
1942 - 1943, I1, 2: were converted to transports: - 1 x 1 - 140/40, torpedoes stowage was decreased, they can carry 1 14m Daihatsu-type landing craft and cargo.
