"C1 - Vickers" 3 class submarines (8-GO) (1909)





    9-go 1911 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
第8号艦 [8-go], 11.1924- 波1 [HA1]   366 Vickers, Barrow, UK 8.1907 19.5.1908 2.1909 stricken 12.1928
第9号艦 [9-go], 11.1924- 波2 [HA2]   367 Vickers, Barrow, UK 8.1907 19.5.1908 3.1909 stricken 12.1928


Technical data


Displacement standard, t



Displacement normal, t

286 / 321

Length, m

40.1 pp 43.3 oa

Breadth, m

4.10

Draught, m

3.40

No of shafts

1

Machinery

1 16-cyl Vickers petrol engine / 1 electric motor

Power, h. p.

600 / 300

Max speed, kts

12 / 8.5

Fuel, t

petrol 15

Endurance, nm(kts)660(12) / 60(4)
Armament

2 - 450 TT (bow, 2), 1 x 1 - 6.5/115

Complement

26

Diving depth operational, m30


Standard scale images


<i>8-go</i> 1909
8-go 1909


Graphics

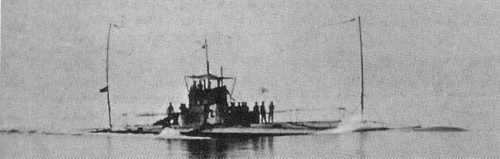

    <i>9-go</i> 1911 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
    9-go 1911 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Copy of RN "C" class submarines. Single-hulled, ordered under the 1907 programme. Japanese did not have experience of designing of modern submarines, and it was necessary to be content with already hopelessly out-of-date design.

Modernizations

None.

Naval service

No significant events.

Many thanks to Wolfgang Stöhr for additional information on this page.
