UWAJIMA coastal minesweepers (1990 - 1996)

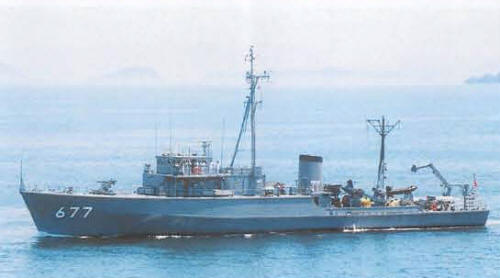

Makishima 2008

Ships


Name No Yard No Builder Laid down Launched Comp Fate
うわじま [Uwajima] MSC672   NKK, Tsurumi 18.5.1989 23.5.1990 19.12.1990 stricken 6.2010
いえしま [Ieshima] MSC673, 2.2010- MCL728   Hitachi, Kanagawa 12.5.1989 12.6.1990 19.12.1990 drone control ship 2.2010, stricken 5.2014
つきしま [Tsukishima] MSC674   Hitachi, Kanagawa 27.5.1991 23.7.1992 23.7.1993 stricken 3.2012
まえじま [Maejima] MSC675, 3.2013- MCL729   Hitachi, Kanagawa 1.6.1992 10.6.1993 15.12.1993 drone control ship 3.2013, stricken 3.2017
くめじま [Kumejima] MSC676, 5.2014- MCL730   NKK, Tsurumi 17.2.1993 9.12.1993 12.12.1994 drone control ship 5.2014, stricken 3.2018
まきしま [Makishima] MSC677   Hitachi, Kanagawa 12.5.1993 26.5.1993 12.12.1994 stricken 4.2014
とびしま [Tobishima] MSC678   NKK, Tsurumi 22.6.1993 30.8.1994 10.3.1995 stricken 5.2014
とびしま [Yugeshima] MSC679, 3.2017- MCL731   Hitachi, Kanagawa 10.4.1995 24.5.1996 11.12.1996 drone control ship 3.2017, in service (2019)
ながしま [Nagashima] MSC680, 3.2018- MCL732   NKK, Tsurumi 14.4.1995 30.5.1996 25.12.1996 drone control ship 3.2018, in service (2019)


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate うわじま [Uwajima] MSC672   NKK, Tsurumi 18.5.1989 23.5.1990 19.12.1990 stricken 6.2010 いえしま [Ieshima] MSC673, 2.2010- MCL728   Hitachi, Kanagawa 12.5.1989 12.6.1990 19.12.1990 drone control ship 2.2010, stricken 5.2014 つきしま [Tsukishima] MSC674   Hitachi, Kanagawa 27.5.1991 23.7.1992 23.7.1993 stricken 3.2012 まえじま [Maejima] MSC675, 3.2013- MCL729   Hitachi, Kanagawa 1.6.1992 10.6.1993 15.12.1993 drone control ship 3.2013, stricken 3.2017 くめじま [Kumejima] MSC676, 5.2014- MCL730   NKK, Tsurumi 17.2.1993 9.12.1993 12.12.1994 drone control ship 5.2014, stricken 3.2018 まきしま [Makishima] MSC677   Hitachi, Kanagawa 12.5.1993 26.5.1993 12.12.1994 stricken 4.2014 とびしま [Tobishima] MSC678   NKK, Tsurumi 22.6.1993 30.8.1994 10.3.1995 stricken 5.2014 とびしま [Yugeshima] MSC679, 3.2017- MCL731   Hitachi, Kanagawa 10.4.1995 24.5.1996 11.12.1996 drone control ship 3.2017, in service (2019) ながしま [Nagashima] MSC680, 3.2018- MCL732   NKK, Tsurumi 14.4.1995 30.5.1996 25.12.1996 drone control ship 3.2018, in service (2019)

Technical data


Displacement standard, t

490
Displacement full, t

570
Length, m

57.7
Breadth, m

9.40
Draught, m

2.90
No of shafts

2
Machinery

2 Mitsubishi 6NMU-TA-1 diesels
Power, h. p.

1800
Max speed, kts

14
Fuel, t

diesel oil
Endurance, nm(kts)

2400(10)
Armament

1 x 3 - 20/76 Sea Vulcan JM-61-B, S-7-1 USV, 53-shiki mechanical, S-6 magnetic, S-2-1 acoustic minesweeping gear
Electronic equipment

OPS-39Y radar, ZQS-3-1 sonar
Complement

45


Standard scale images


<i>Uwajima </i>2000
Uwajima 2000


Graphics


<i>Makishima </i>2008
Makishima 2008


Project history

A revised version of the Hatsushima class, lengthened primarily to permit two-high rather than three-high bunking for enlisted personnel. Were to have been of GRP construction but are built of wood.

Modernizations

2010, Ieshima; 2013, Maeshima; 2014, Kumejima; 2017, Yugeshima; 2018, Nagashima: + SAM-type minesweeping drone control equipment

Naval service

No significant events.
