HAYASE minelayer - mine warfare support ship (1971)





Hayase 1978

Ships


Name No Yard No Builder Laid down Launched Comp Fate
はやせ [Hayase] MST462, 3.1998- ASU7020   IHI, Tokyo 16.9.1970 21.6.1971 6.11.1971 TS 3.1998, stricken 12.2002


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate はやせ [Hayase] MST462, 3.1998- ASU7020   IHI, Tokyo 16.9.1970 21.6.1971 6.11.1971 TS 3.1998, stricken 12.2002

Technical data


Displacement standard, t

2000

Displacement normal, t

3050

Length, m

99.0

Breadth, m

14.5

Draught, m

4.20

No of shafts

2

Machinery

4 Kawasaki-MAN V6V22/30ATL diesels

Power, h. p.

6400

Max speed, kts

18

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

1 x 2 - 76/50 Mk 33, 2 x 1 - 20/70 Mk 10, 2 x 3 - 324 68-shik TT, 200 mines, helicopter deck

Electronic equipmentOPS-14, OPS-17, SPG-34 radars, SQS-11A, ZQS-1B sonars
Complement180


Standard scale images


<i>Hayase</i> 1980
Hayase 1980


Graphics

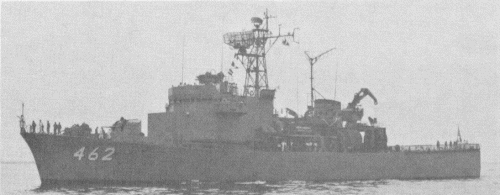

<i>Hayase </i>1978
Hayase 1978


Project history

A multi-role warfare ship, with five rails for minelaying, a platform aft for landing a minesweeping helicopter, and the faculties to support mine counter-measures operations.

Modernizations

none

Naval service

No significant events.
