NAVYPEDIA


5-go 1962

Ships

Names	Builders	Commissioned	Losses	Transfers	Discarding
MSB701-706 1号-6号 [1-go-6-go]	Hitachi Zosen, Kanagawa: MSB701, 702 NKK, Tsurumi: MSB703-706	3-4/1957: MSB701-704 3/1959: MSB705, 706	none	none	3/1973: MSB701, 702 3-12/1974: MSB703-706

Technical data

Displacement standard, t	43
Displacement full, t	45
Length, m	18.6
Breadth, m	5.04
Draught, m	1.34
No of shafts	2
Machinery	2 Mitsubishi DH7M diesels
Power, h. p.	320
Max speed, kts	11
Fuel, t	diesel oil
Endurance, nm(kts)
Armament	53-shiki mechanical or A Mk 6b  acoustic minesweeping gear
Electronic equipment	none
Complement	10

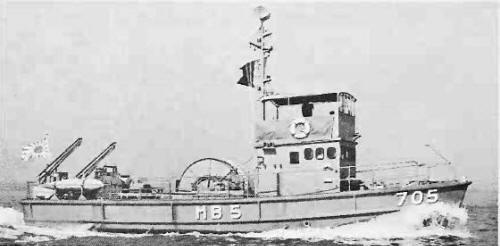

Standard scale images

Graphics

Project history

Wooden minesweeping boats built on the basis of the US MSB design. During minesweeping operations they were supported by MSTs.

Modernizations

None.

Naval service

No significant events.
