ATSUMI tank landing ships (1972 - 1977)

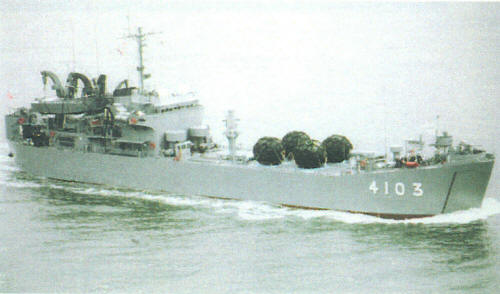

Nemuro 2002

Ships


Name No Yard No Builder Laid down Launched Comp Fate
あつみ [Atsumi] LST4101   Sasebo HI 7.12.1971 13.6.1972 27.11.1972 stricken 2.1998
もとぶ [Motobu] LST4102   Sasebo HI 23.4.1973 3.8.1973 21.12.1973 stricken 4.1999
ねむろ [Nemuro] LST4103   Sasebo HI 18.11.1976 16.6.1977 27.10.1977 stricken 5.2005


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate あつみ [Atsumi] LST4101   Sasebo HI 7.12.1971 13.6.1972 27.11.1972 stricken 2.1998 もとぶ [Motobu] LST4102   Sasebo HI 23.4.1973 3.8.1973 21.12.1973 stricken 4.1999 ねむろ [Nemuro] LST4103   Sasebo HI 18.11.1976 16.6.1977 27.10.1977 stricken 5.2005

Technical data


Displacement standard, t

1550

Displacement full, t2470
Length, m

89.0

Breadth, m

13.0

Draught, m

2.80

No of shafts2
Machinery

2 Kawasaki-MAN V8V22/30AMTL diesels

Power, h. p.

4400

Max speed, kts

13

Fuel, t

diesel oil

Endurance, nm(kts)4300(12)
Armament

2 x 2 - 40/60 Mk 1 mod. 2

Military load

2 LCVP, 1 LCM, 20 vehicles or 400 t cargo, 130 troops

Electronic equipmentOPS-9 radar
Complement100


Standard scale images


<i>Nemuro </i>2000
Nemuro 2000


Graphics


<i>Nemuro </i>2002
Nemuro 2002


Project history

Small tank landing ships. 2 LCVP were carried on davits, one LCM or LCVP can be carried on deck amidships.

Modernizations

None.

Naval service

No significant events.
