1-GO small landing ships (1988 - 1992)





1-go 2008

Ships


Name No Yard No Builder Laid down Launched Comp Fate
1号 [1-go] LC2001   Sasebo HI 11.5.2987 9.10.1987 17.3.1988 in service (2019)
2号 [2-go] LC2002   Sasebo HI 15.5.1991 7.10.1991 11.3.1992 in service (2019)


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate 1号 [1-go] LC2001   Sasebo HI 11.5.2987 9.10.1987 17.3.1988 in service (2019) 2号 [2-go] LC2002   Sasebo HI 15.5.1991 7.10.1991 11.3.1992 in service (2019)

Technical data


Displacement standard, t

420

Displacement full, t

540

Length, m

49.0 pp 52.0 oa

Breadth, m

8.70

Draught, m

1.60

No of shafts

2

Machinery

2 Mitsubishi S6UMTK diesels

Power, h. p.

3000

Max speed, kts

12

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

1 x 3 - 20/76 JM61-MB Sea Vulcan

Military load

60 troops, cargo

Electronic equipmentOPS-9B radar
Complement28


Graphics

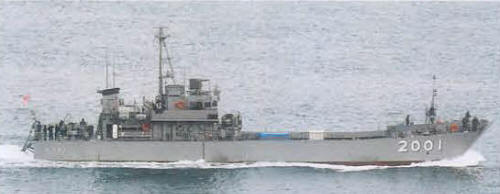

1-go<i> </i>2008
1-go 2008


Project history

Bluff bow/ramp and open cargo deck. Building of LC No3 was cancelled.

Modernizations

None.

Naval service

No significant events.
