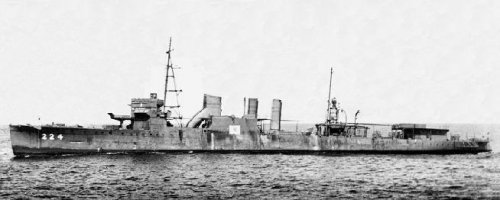

  DD224 1946 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
第102号哨戒艇 [102-go] (ex-Stewart)		490	Cramp, Philadelphia, USA	9.1919	4.3.1920	9.1920 // 9.1943	surrendered 10.1945, to USA 11.1945, sunk as target 24.5.1946

Technical data

Displacement standard, t	1270
Displacement full, t	1640
Length, m	94.5 wl 95.8 oa
Breadth, m	9.40
Draught, m	3.30
No of shafts	2
Machinery	2 sets Parsons geared steam turbines, 4 White-Forster boilers (3 operational)
Power, h. p.	14000
Max speed, kts	26
Fuel, t	oil 375
Endurance, nm(kts)	2500(12)
Armament	2 x 1 - 76/40 11-shiki, 2 x 1 - 13.2/76, 6 DCT (72)
Electronic equipment	93-shiki sonar
Complement	110

Standard scale images

Graphics

Project history

After capture by Japan in the beginning of 1942 of extensive possession in South-East Asia, Japanese has got some number of enemy ships in damaged condition, thrown out by Americans, British and Dutch at retreat. Part of these ships has been repaired by Japanese and commissioned by IJN as patrols. Three destroyers, British Thracian, American Stewart and Dutch Banckert, become in the IJN patrols Р101, Р102 and Р106, have appeared the largest trophies. Remaining were former minesweepers, tugs and colonial service vessels of Dutch and American Navies.

Р102 (ex-American destroyer Stewart) was scuttled by Americans in Surabaya 2.3.1942, captured by Japanese and in February, 1943 salvaged and put on repair. She was commissioned by IJN in September, 1943 as patrol ship Р102.

Modernizations

11.1944: - 2 x 1 - 13.2/76; + 4 x 3 - 25/60 96-shiki, 4 x 1 - 25/60 96-shiki, 2 x 2 - 13.2/76, 2 x 2 - 450 TT, 93-shiki hydrophone

1945: - 93-shiki sonar; + 2-shiki 2-go, 3-shiki 1-go radars, 3-shiki sonar
