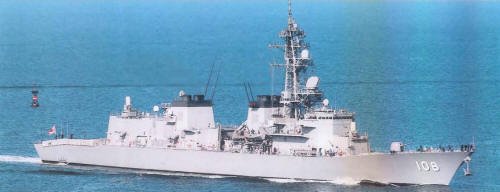

Akebono 2008

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
むらさめ [Murasame]	DD101		IHI, Tokyo	18.8.1993	23.8.1994	12.3.1996	in service (2019)
はるさめ [Harusame]	DD102		Mitsui, Tamano	11.8.1994	16.10.1995	24.3.1997	in service (2019)
ゆうだち [Yudachi]	DD103		Sumitomo, Uraga	18.3.1996	19.8.1997	4.3.1999	in service (2019)
きりさめ [Kirisame]	DD104		Mitsubishi, Nagasaki	3.4.1996	21.8.1997	18.3.1999	in service (2019)
いなづま [Inazuma]	DD105		Mitsubishi, Nagasaki	8.5.1997	9.9.1998	15.3.2000	in service (2019)
さみだれ [Samidare]	DD106		IHI, Tokyo	11.9.1997	24.9.1998	21.3.2000	in service (2019)
いかづち [Ikazuchi]	DD107		Hitachi, Maizuru	25.2.1998	24.6.1999	14.3.2001	in service (2019)
いかづち [Akebono]	DD108		IHI, Tokyo	29.10.1999	25.9.2000	19.3.2002	in service (2019)
ありあけ [Ariake]	DD109		Mitsubishi, Nagasaki	18.5.1999	16.10.2000	6.3.2002	in service (2019)

Technical data

Displacement standard, t	4550
Displacement full, t	6200
Length, m	145.0 wl 151.0 oa
Breadth, m	17.4
Draught, m	5.20
No of shafts	2
Machinery	COGAG: 2 General Electric - IHI LM-2500 gas turbines + 2 Kawasaki - Rolls-Royce Spey SM-1C gas turbines
Power, h. p.	33000 + 27000 = 60000
Max speed, kts	30
Fuel, t	gas turbine oil
Endurance, nm(kts)	4500(18)
Armament	2 x 4 SSM-1B SSM (8 SSM-1B), 1 x 16 Sea Sparrow SAM (VLS, 16 RIM-7), 1 x 16 ASROC ASuR (VLS, 16 RUM-139), 1 x 1 - 76/62 OTO-Melara Compact, 2 x 6 - 20/76 Mk 15 Phalanx, 2 x 3 - 324 HOS-302 TT, 1 helicopter (SH-60J Seahawk)
Electronic equipment	OPS-20, OPS-28D, OPS-24B, 2x FCS-2-31, 2x Mk 90 radars, OQS-5, OQR-1 sonars, NOLQ-2, NOLR-8 ECM suites, 4x Mk 36 SRBOC decoy RL, SLQ-25 Nixie torpedo decoy, OYQ-9 CCS
Complement	165

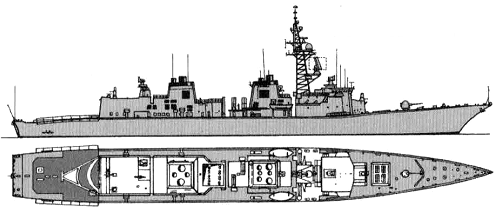

Standard scale images

Graphics

Project history

First unit authorized under FY 91 budget, second under FY 92 budget. Two were approved in FY 94, another pair in FY 95, and DD 107 in FY 96. DD108 and DD109 were approved under the FY 97 budget. DD108 was the final ship constructed by IHI (Ishikawajima-Harima Heavy Industries), Tokyo.

Both the Rolls-Royce and General Electric gas turbines are considerably down-rated from their normal maximum power. Although the plant could in theory generate a total of 106,500hp, and any turbine or combination of turbines can be connected to either shaft, the maximum output is limited to 60,000hp. Berthing for the crew is two-high, and there is a small gymnasium.

There are two VLS groups: a Mk 41 system group with 16 cells forward for vertical-launch ASROC missiles, and a shorter Mk 48 group amidships with 16 cells for Sea Sparrow SAMs. The vertical-launch ASROC missiles are rarely carried. The U.S. SQQ-28 (ORQ-1) helicopter-deployed sonobuoy datalink is fitted.

Modernizations

mid-2010s, all: - 1 x 16 Sea Sparrow SAM (VLS, 16 RIM-7); + 1 x 16 ESSM (Evolved Sea Sparrow) SAM (VLS, 16 RIM-162)

Naval service

No significant events.
