ATAGO missile destroyers (2007 - 2008)

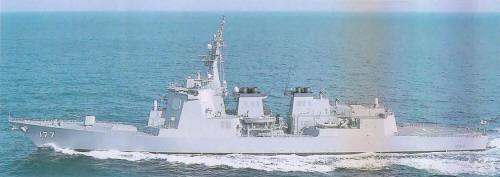

Atago 2007 Many thanks to ChangZhi Wang for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
あたご [Atago] DDG177   Mitsubishi, Nagasaki 5.4.2004 24.8.2005 15.3.2007 in service (2019)
あしがら [Ashigara] DDG178   Mitsubishi, Nagasaki 6.4.2005 30.4.2006 13.3.2008 in service (2019)


Technical data


Displacement standard, t

7750

Displacement full, t

10000

Length, m

150.5 pp 164.9 oa

Breadth, m

21.0

Draught, m

6.20 hull

No of shafts

2

Machinery

COGAG: 4 General Electric LM-2500 gas turbines

Power, h. p.

100000

Max speed, kts

30

Fuel, t

gas turbine oil

Endurance, nm(kts)4500(20)
Armament

2 x 4 SSM-1B SSM (8 SSM-1B), (1 x 64 + 1 x 32) Standard SM-2MR SAM / ASROC VLA ASuR Mk 41 (VLS, 96 RIM-66 / x4 RIM-162 / RUM-139), 1 x 1 - 127/54 Mk 45 mod. 4, 2 x 6 - 20/76 Mk 15 Phalanx Block 1B, 2 x 3 - 324 HOS-302 TT, 2 helicopters (SH-60J)

Electronic equipment

SPY-1D(v), OPS-28E, 3x SPG-62, FCS-2-21, OPS-20, 2x Mk 90 radars, Mk 46 e/o director, OQS-102 (SQS-53C) sonar, NOLQ-2B, OLT-3 ECM suites, 4x Mk 36 SRBOC decoy RL, SLQ-25 Nixie torpedo decoy, OYQ-6 CCS

Complement

307



Standard scale images


<i>Atago </i>2010
Atago 2010


Graphics


<i>Atago </i>2007 <i>Many thanks to ChangZhi Wang for additional information on this page.</i>
Atago 2007 Many thanks to ChangZhi Wang for additional information on this page.


Project history

Follow-on to the Kongo-class destroyers. DDG177 was added to the 2001-05 procurement plan in 1998 and DDG 178 in 2000 to improve strategic air defense capabilities. The design is essentially an enlargement of the Kongo class with incorporation of a helicopter hangar. VLS missile configuration is reversed from the Kongo class with the larger battery carried forward and the remaining weapons fitted aft. Fitted with the new version of Aegis weapon system (Baseline J6) with CEC 'Cooperative Engagement Capability), UPX-29(v) IFF interrogation system, ORQ-1 helicopter datalink, Mk 34 gun weapon-control system, and SQQ-121 Computer-Aided Dead-Reckoning Tracker. They are optimized for employment as theater air defense ships, using the U.S. Standard SM-2 Block III and are being upgraded with SM-3 Block 1A BMD missiles. Make considerable use of COTS (Commercial Off-The-Shelf) computer and display equipment. The 127mm gun is carried in a faceted, radar reflection reduction gunhouse.

Modernizations

None.

Naval service

No significant events.

Many thanks to ChangZhi Wang for additional information on this page.
