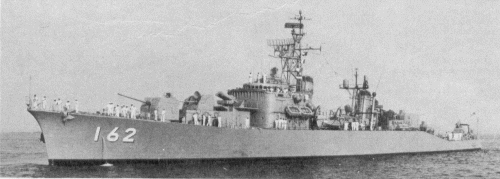

Teruzuki 1978

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
あきづき [Akizuki]	DD161, 3.1985- ASU7010		Mitsubishi Zosen, Nagasaki	31.7.1958	26.6.1959	13.2.1960	TS 3.1985, stricken 12.1993
てるづき [Teruzuki]	DD162, 3.1985- ASU7012, 7.1987- TV3504		Shin Mitsubishi Jyuko, Kobe	15.8.1958	24.6.1959	29.2.1960	TS 3.1985, stricken 9.1993

Technical data

Displacement standard, t	2388
Displacement full, t	2890
Length, m	118.0 oa 115.0 pp
Breadth, m	12.0
Draught, m	4.00 light
No of shafts	2
Machinery	DD161: 2 sets Mitsubishi-Escher Weiss geared steam turbines, 4 Mitsubishi CE boilers DD162: 2 sets Westinghouse geared steam turbines, 4 Mitsubishi CE boilers
Power, h. p.	45000
Max speed, kts	32
Fuel, t	oil
Endurance, nm(kts)
Armament	3 x 1 - 127/54 Mk 39, 2 x 2 - 76/50 Mk 33, 1 x 4 - 533 TT (8), 2 - 483 TT, 1 x 1 - 324 Mk 108 Weapon Alfa ASWRL, 2 x 24 - 178 Hedgehog Mk 15 ASWRL, 2 DCT
Electronic equipment	OPS-1, OPS-15, SPG-34, SPG-35 radars, SQS-23 sonar, BLR-1 ECM suite
Complement	330

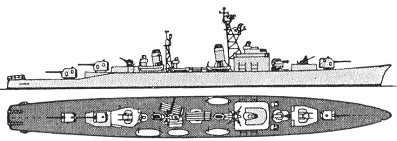

Standard scale images

Graphics

Project history The Akizuki class were built under the US Military Aid Programme and carried the 127mm/54 guns as in the Murasames. They featured a long forecastle hull and wer

The Akizuki class were built under the US Military Aid Programme and carried the 127mm/54 guns as in the Murasames. They featured a long forecastle hull and were designed as flotilla leaders. Weapon Alfa, an ASW mortar developed in the US, proved to be unsatisfactory.

Modernizations

1967, Teruzuki; 1968, Akizuki: + OQA-1 sonar

1977, Teruzuki; 1979, Akizuki: - 2 - 483 TT, 1 x 1 - 324 Mk 108 Weapon Alfa ASWRL, SQS-23 sonar; + 2 x 3 - 324 TT, 1 x 4 - 375 type 71 ASWRL, SQS-29 sonar

1985, both: - 1 x 4 - 533 TT, OQA-1 sonar

1989, Akizuki: - 1 x 1 - 127/54 (No3); + trial towed sonar array

Naval service

All ships were later transferred to Fleet Training and Development Command as Special Use Auxiliaries (ASU).
