OTOWA protected cruiser (1904)

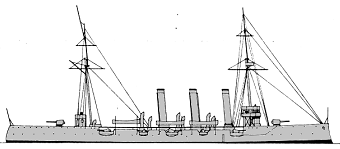

Otowa 1906

Name No Builder Laid down Launched Comp Fate
音羽 <Otowa>   Yokosuka K K 3/1/1903 2/11/1903 6/9/1904 wrecked 1/8/1917



Displacement normal, t

3000

Displacement full, t



Length, m

98.0 pp 103.9 oa

Breadth, m

12.6

Draught, m

4.80

No of shafts

2

Machinery

4-cyl VTE, 10 Kampon boilers

Power, h. p.

10000

Max speed, kts

21

Fuel, t

coal 875

Endurance, nm(kts) 7000(10)

Armour, mm

Harvey nickel steel - deck: 76 - 51, gun shields: 38, CT: 102

Armament

2 x 1 - 152/40 Armstrong Z, 6 x 1 - 120/40 Armstrong T, 4 x 1 - 76/40 Armstrong N, 2 - 450 TT (beam)

Complement

312

Ship project history: The Otowa, ordered under the 1896-1897 Programme, was a smaller, faster version of the Tsushima class, but with a lighter armament. The design reverted to the sponsoned 120mm as in the earlier Suma; instead of beam-mounted 152mm guns, the fore and aft 152mm were retained. The Otowa was the first ship to be equipped with the Japanese-designed Kampon water-rube boiler. The engines were identical to those in the Tsushima with a slight increase in hp. The boilers were of the three-drum pattern and apart from having curved tubes, were very similar to the Yarrow boiler.

The armoured deck was 13mm thicker than in the Tsushima, but still not as strong as that fitted to the Elswick designed cruisers.

Ship protection: Protective deck had 76mm flat and 76mm slopes amidships and 51mm flat and slopes (turtleback form) at ship ends. Guns were protected by 38mm shields, CT had 102mm sides.

Modernizations: None.

Naval service: The Otowa was present at the Battle of Tsushima and was lost when she ran aground on the Japanese coast (near Daio Saki, Mieken, Shima Hanto) 1/8/1917.
